UF12A23-STHR-M5

  • BRVN:
    BRVN-UF12A23-STHR-M5
  • MPN:
    UF12A23-STHR-M5
  • MFR:
  • Description:

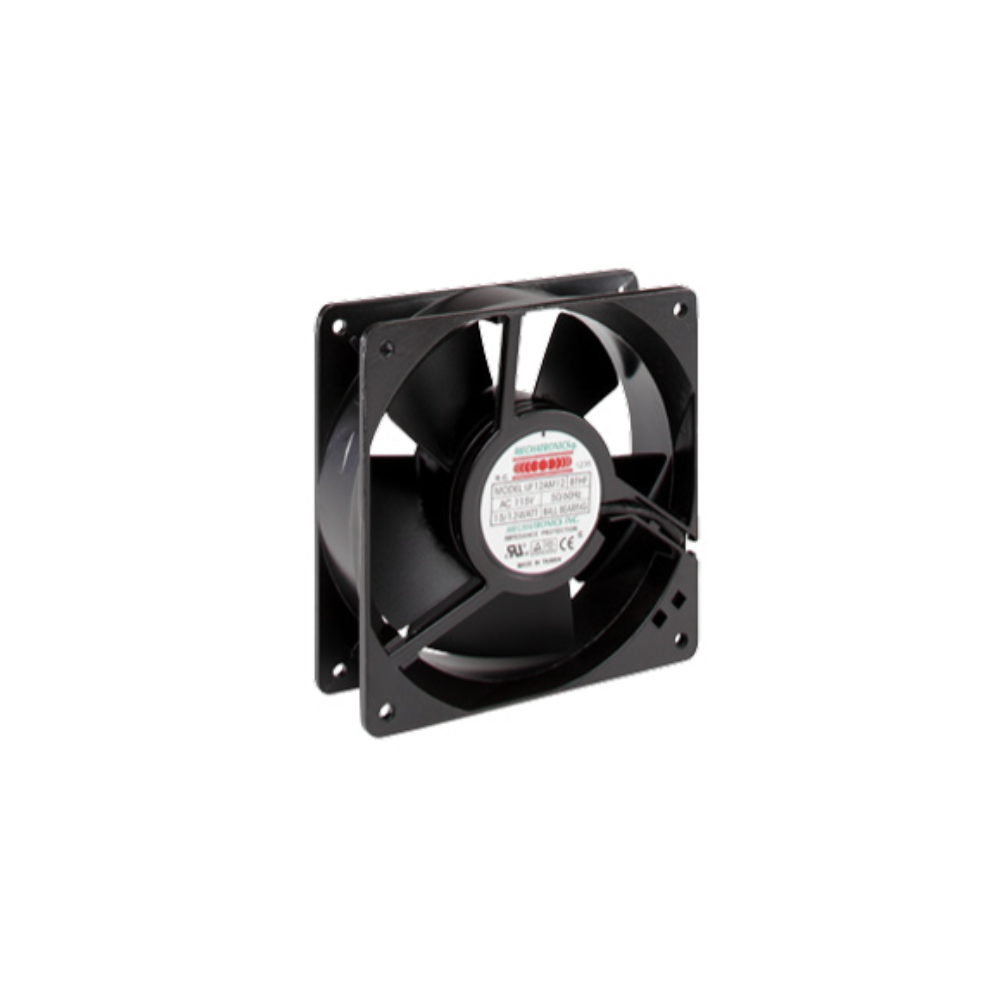

    FAN AXIAL 120X38MM 230VAC TERM
Datasheet

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: FAN AXIAL 120X38MM 230VAC TERM
  • Manufacturer: Mechatronics
  • Length: 0 mm
  • Series: UF12A
  • Product Status: Active
  • Size / Dimension: Square - 120mm L x 120mm H
  • Features: -
  • Operating Temperature: -40 ~ 158°F (-40 ~ 70°C)
  • Voltage - Rated: 230VAC
  • Width: 38.00mm
  • Air Flow: 106.0 CFM (2.97m³/min)
  • Static Pressure: 0.350 in H2O (87.2 Pa)
  • Bearing Type: Sleeve
  • Fan Type: Tubeaxial
  • Noise: 46.0dB(A)
  • RPM: 3100 RPM
  • Termination: 2 Terminals
  • Ingress Protection: -
  • Approval Agency: CE, cUL, TUV, UL
  • Weight: 1.168 lbs (530 g)
  • Power (Watts): 15.00W
