TPK-R-3.15A

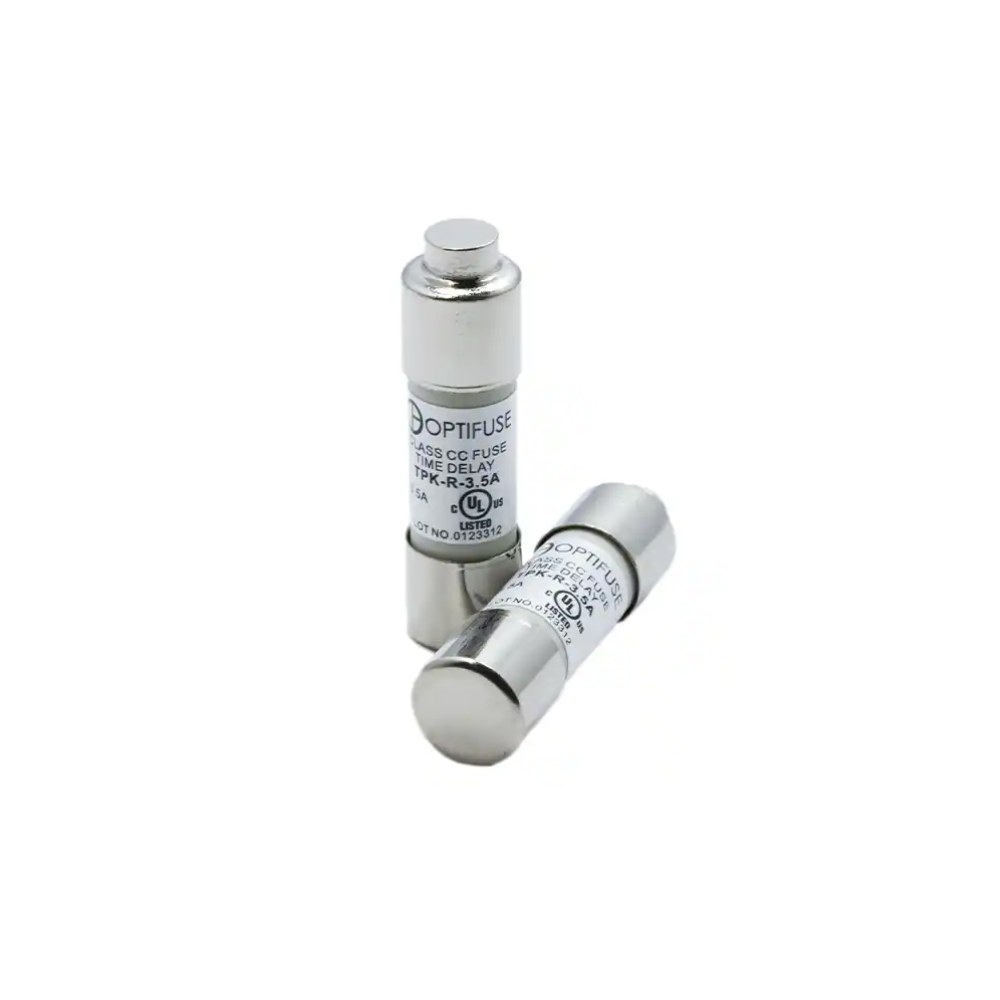

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bulk
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1 | $14.25 | $14.25 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: UL Class CC Fuse, Time Delay 3.1
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: TPK-R
- Product Status: Active
- Voltage Rating - AC: 600 V
- Current Rating (Amps): 3.15A
- Approval Agency: CSA, UL
- Package / Case: 5AG, 10mm x 38mm (Midget)
- Operating Temperature: -
- Mounting Type: Requires Holder
- Size / Dimension: 0.406" Dia x 1.496" L (10.30mm x 38.00mm)
- Fuse Type: Cartridge
- Voltage Rating - DC: 300 V
- Response Time: Slow Blow
- Breaking Capacity @ Rated Voltage: 200kA AC, 10kA DC
- Applications: Electrical, Industrial
- Features: -
- Class: CC
-
- Datasheet: BRVN-TPK-R-3.15A
