RH1041OR-MFPGNL
-
BRVN:BRVN-RH1041OR-MFPGNL
-
MPN:RH1041OR-MFPGNL
-
MFR:
-
Description:RCA JACK

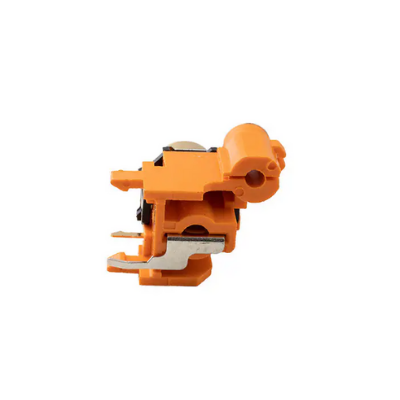

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: RCA JACK
- Manufacturer: RDI Inc.
- Length: 0 mm
- Series: -
- Product Status: Active
- Shielding: Shielded
- Features: -
- Mounting Type: Through Hole, Right Angle
- Operating Temperature: -40°C ~ 70°C
- Termination: -
- Connector Type: Phono (RCA) Jack, Dual
- Gender: Female
- Industry Recognized Mating Diameter: 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone, 3.20mm ID, 9mm OD (RCA)
- Actual Diameter: 0.098" (2.50mm), 0.126" (3.20mm)
- Number of Positions/Contacts: 2 Conductors, 2 Contacts
- Internal Switch(s): Does Not Contain Switch
- Insulation Color: Orange
- Signal Lines: Mono
