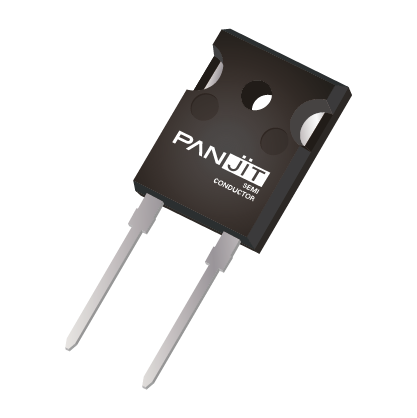

PSDH60120L1_T0_00001
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DIODE GP 1.2000V 60A TO247AD-2
- Manufacturer: PANJIT
- Length: 0 mm
- Series: 1200FRED-Optima
- Product Status: Active
- Mounting Type: Through Hole
- Package / Case: TO-247-2
- Supplier Device Package: TO-247AD-2
- Current - Reverse Leakage @ Vr: 250 µA @ 1200 V
- Voltage - Forward (Vf) (Max) @ If: 2500 V @ 60 A
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io): 60A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 330 ns
- Capacitance @ Vr, F: -
- Operating Temperature - Junction: -55°C ~ 150°C
-
- Datasheet: BRVN-PSDH60120L1_T0_00001
-
- ECCN: EAR99
- HTSUS: 8541100000
