PJQ5846_R2_00001

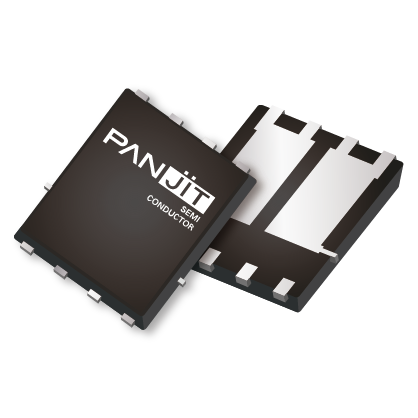

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 40V N-CHANNEL ENHANCEMENT MODE M
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Active
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-PowerTDFN
- Supplier Device Package: DFN5060B-8
- FET Type: 2 N-Channel (Dual)
- Drain to Source Voltage (Vdss): 40V
- Current - Continuous Drain (Id) @ 25°C: 9.5A (Ta), 40A (Tc)
- Rds On (Max) @ Id, Vgs: 10.5mOhm @ 8A, 10V
- Vgs(th) (Max) @ Id: 2500V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 22nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds: 1258pF @ 25V
- FET Feature: Standard
- Power - Max: 1.7W (Ta), 32W (Tc)
-
- Datasheet: BRVN-PJQ5846_R2_00001
