PJQ5606_R2_00001

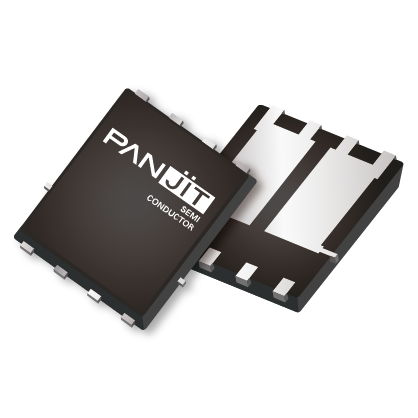

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 30V COMPLEMENTARY ENHANCEMENT MO
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Active
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-PowerTDFN
- Supplier Device Package: DFN5060B-8
- FET Type: N and P-Channel Complementary
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 7A (Ta), 25A (Tc), 6.1A (Ta), 22A (Tc)
- Rds On (Max) @ Id, Vgs: 19mOhm @ 8A, 10V, 30mOhm @ 4A, 10V
- Vgs(th) (Max) @ Id: 2500V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 4.8nC @ 4.5V, 7.8nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 429pF @ 25V, 846pF @ 15V
- FET Feature: Standard
- Power - Max: 1.7W (Ta), 21W (Tc)
-
- Datasheet: BRVN-PJQ5606_R2_00001
