PJ-030C-SMT

  • BRVN:
    BRVN-PJ-030C-SMT
  • MPN:
    PJ-030C-SMT
  • MFR:
  • Description:
    CONN POWER JACK SOLDER

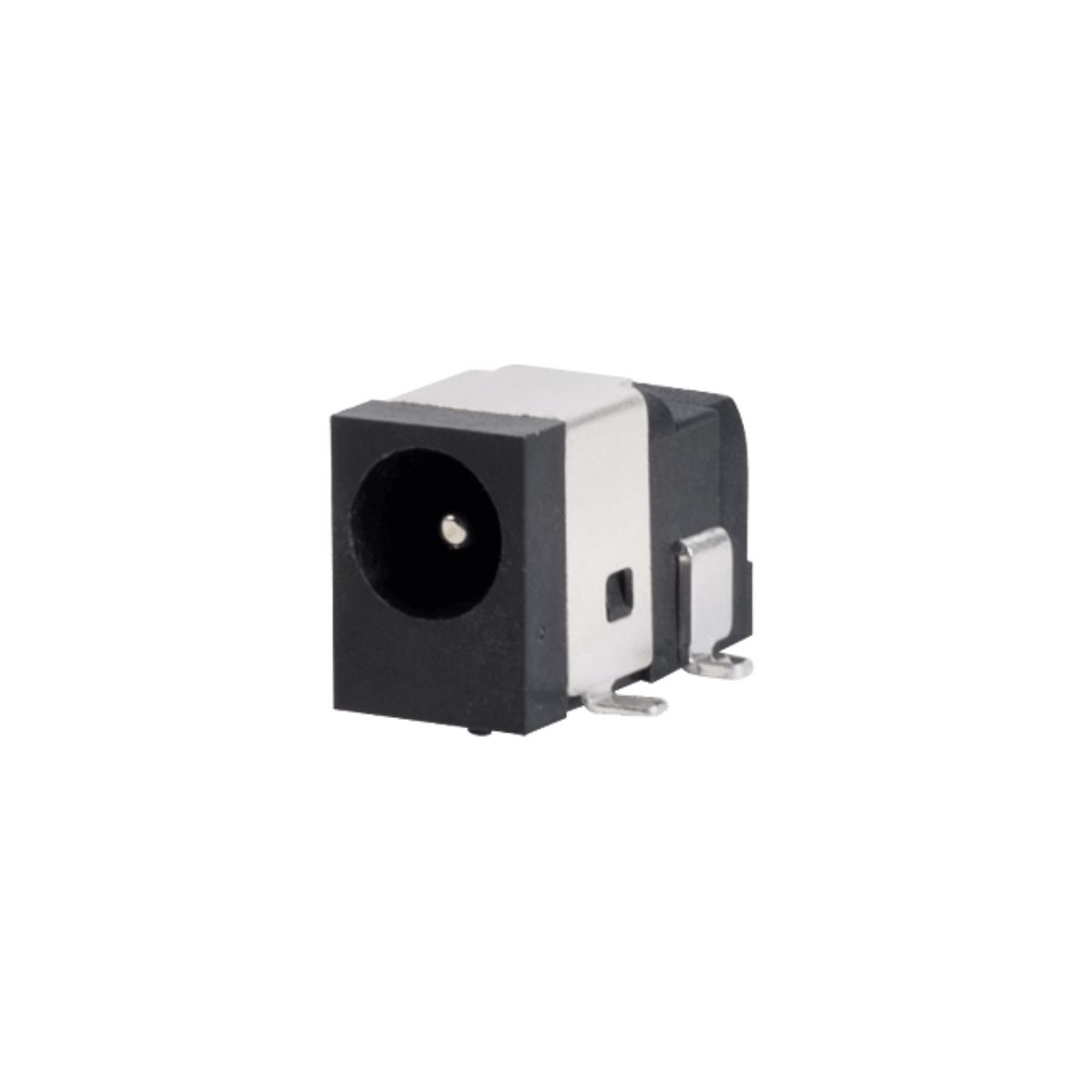

PJ-030C-SMT

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: CONN POWER JACK SOLDER
  • Manufacturer: CUI Devices
  • Length: 0 mm
  • Series: -
  • Product Status: Obsolete
  • Mounting Type: Surface Mount, Right Angle
  • Features: Board Guide
  • Connector Type: Jack
  • Gender: Male
  • Mounting Feature: -
  • Termination: Solder
  • Ingress Protection: -
  • Operating Temperature: -25°C ~ 85°C
  • Current Rating Amps: 2:00 AM
  • Voltage Rated: 16VDC
  • Shielding: Shielded
  • Industry Recognized Mating Diameter: -
  • Actual Diameter: 0.039" (1.00mm ID), 0.165" (4.20mm OD)
  • Number of PositionsContacts: 2 Conductors, 3 Contacts
  • Internal Switchs: Single Switch, Normally Closed
  • Insulation Color: -
  • Mating LengthDepth: -
  • Material Flammability Rating: UL94 V-0
