PH-MVF-5380

  • BRVN:
    BRVN-PH-MVF-5380
  • MPN:
    PH-MVF-5380
  • MFR:
  • Description:

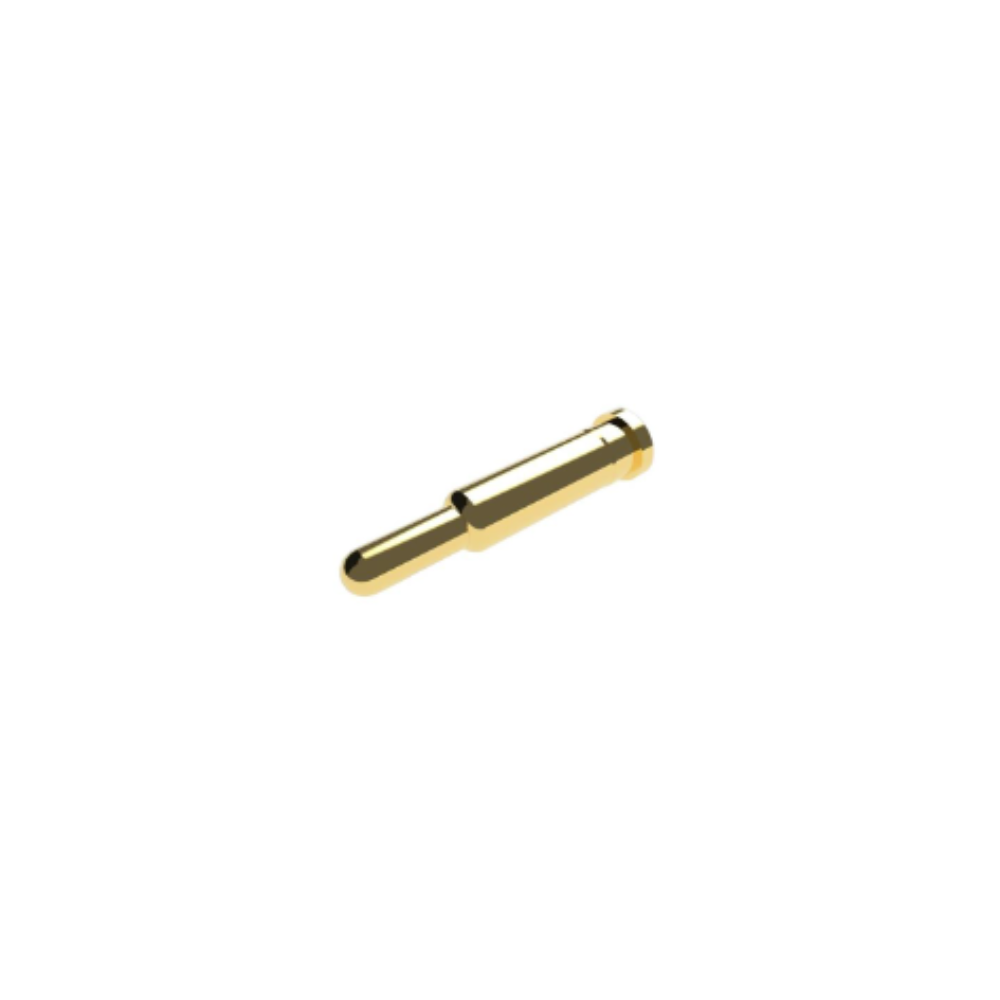

    CONTACT SPRING LOADED SMD GOLD
Datasheet

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: CONTACT SPRING LOADED SMD GOLD
  • Manufacturer: Adam Tech
  • Length: 0 mm
  • Series: PH
  • Product Status: Active
  • Features: -
  • Mounting Type: Surface Mount
  • Contact Finish: Gold
  • Contact Finish Thickness: -
  • Contact Type: Sleeve & Plunger (Pogo Pins)
  • Contact Material: Brass
  • Maximum Working Height: 0.315" (8.00mm)
  • Recommended Working Height: 0.276" (7.00mm)
  • Minimum Working Height: 0.260" (6.60mm)
  • Pad Layout Dimension: Circular - 0.071" (1.80mm)
  • Operating Force Initial: 70gf
  • Operating Force Mid Compression: -
  • Plunger Size: 0.039" (1.00mm) Dia
  • Mating Cycles: 1000000
