MTD-B-09-B-2

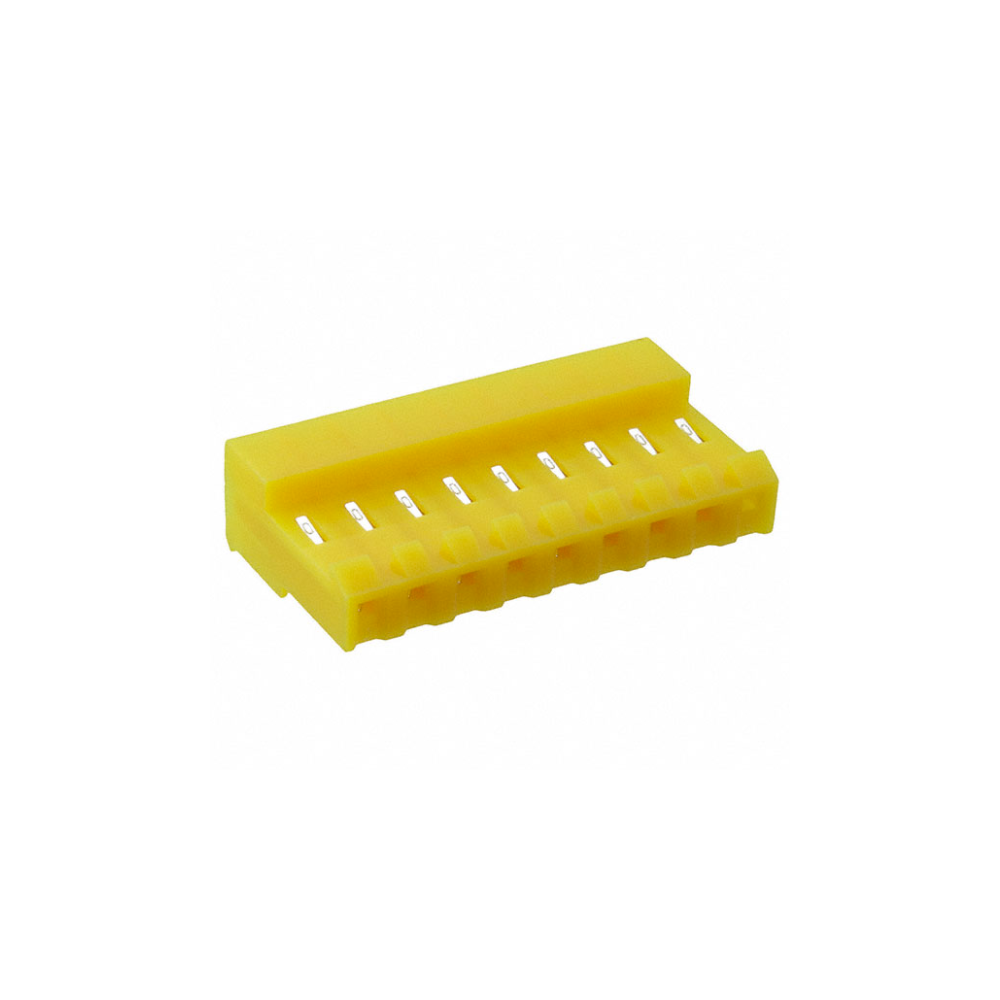

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: WIRE HOUSING IDC, .156", 20AWG,
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: MTD
- Product Status: Active
- Features: Closed End
- Color: Yellow
- Wire Gauge: 20 AWG
- Mounting Type: Free Hanging (In-Line), Right Angle
- Connector Type: Receptacle
- Pitch: 0.156" (3.96mm)
- Number of Rows: 1
- Row Spacing: -
- Contact Finish: Tin
- Contact Finish Thickness: -
- Contact Type: Female Socket
- Number of Positions: 9
- Fastening Type: Locking Ramp
- Cable Termination: IDC
- Wire Type: Discrete or Ribbon Cable
-
- Datasheet: BRVN-MTD-B-09-B-2
