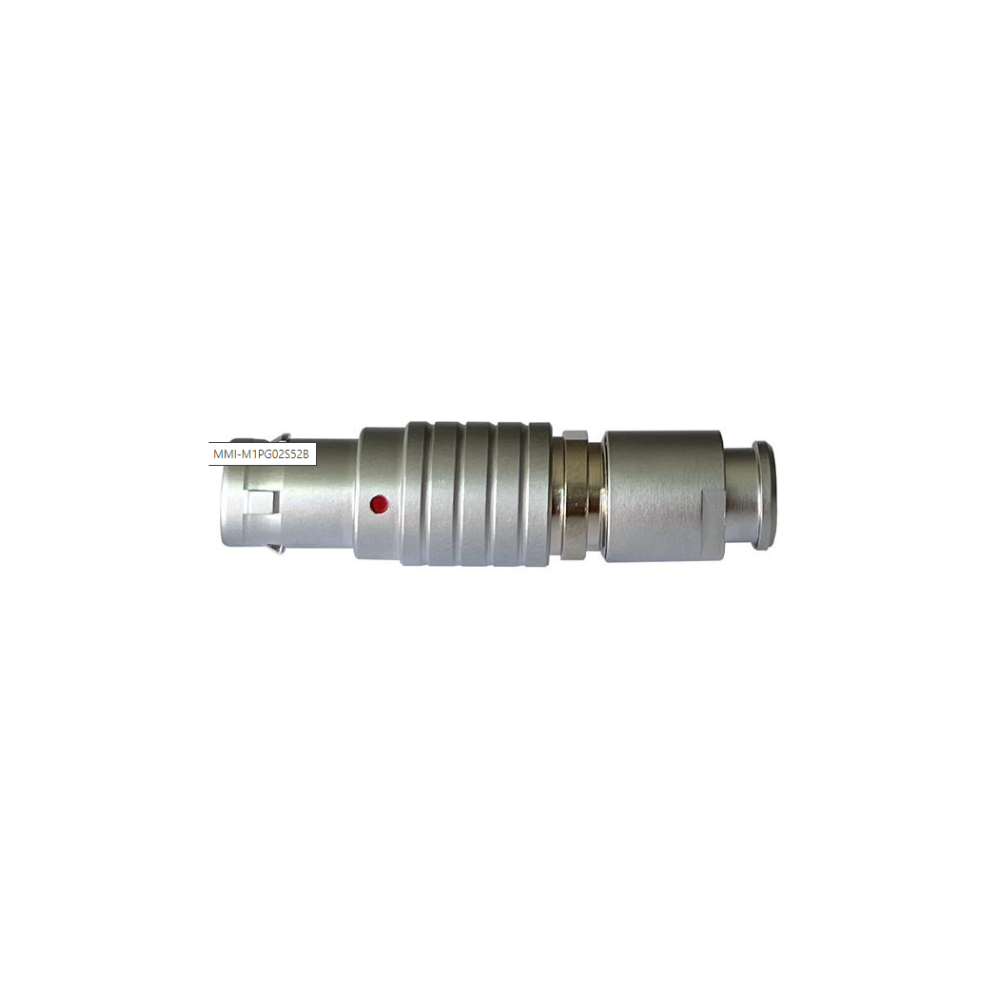

MMI-M1PG02S52B
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CONN PLUG MALE 2P GOLD SLDR CUP
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: MMI
- Product Status: Active
- Features: Backshell, Strain Relief
- Color: Silver
- Shielding: Unshielded
- Mounting Type: Free Hanging (In-Line)
- Current Rating Amps: 9A
- Ingress Protection: IP50 - Dust Protected
- Operating Temperature: -55°C ~ 150°C
- Connector Type: Plug, Male Pins
- Termination: Solder Cup
- Number of Positions: 2
- Fastening Type: Push-Pull
- Voltage Rating: 300V
- Mounting Feature: -
- Material Flammability Rating: -
- Orientation: G
- Contact Finish Mating: Gold
- Shell Size Insert: -
- Shell Size MIL: -
- Primary Material: Metal
- Shell Material: Brass
- Shell Finish: Chrome
- Cable Opening: -
-
- Datasheet: BRVN-MMI-M1PG02S52B
