MES25 NC080

  • BRVN:
    BRVN-MES25 NC080
  • MPN:
    MES25 NC080
  • MFR:
  • Description:
    CABLE GLAND 11-17MM M25 BRASS
Datasheet
MES25 NC080

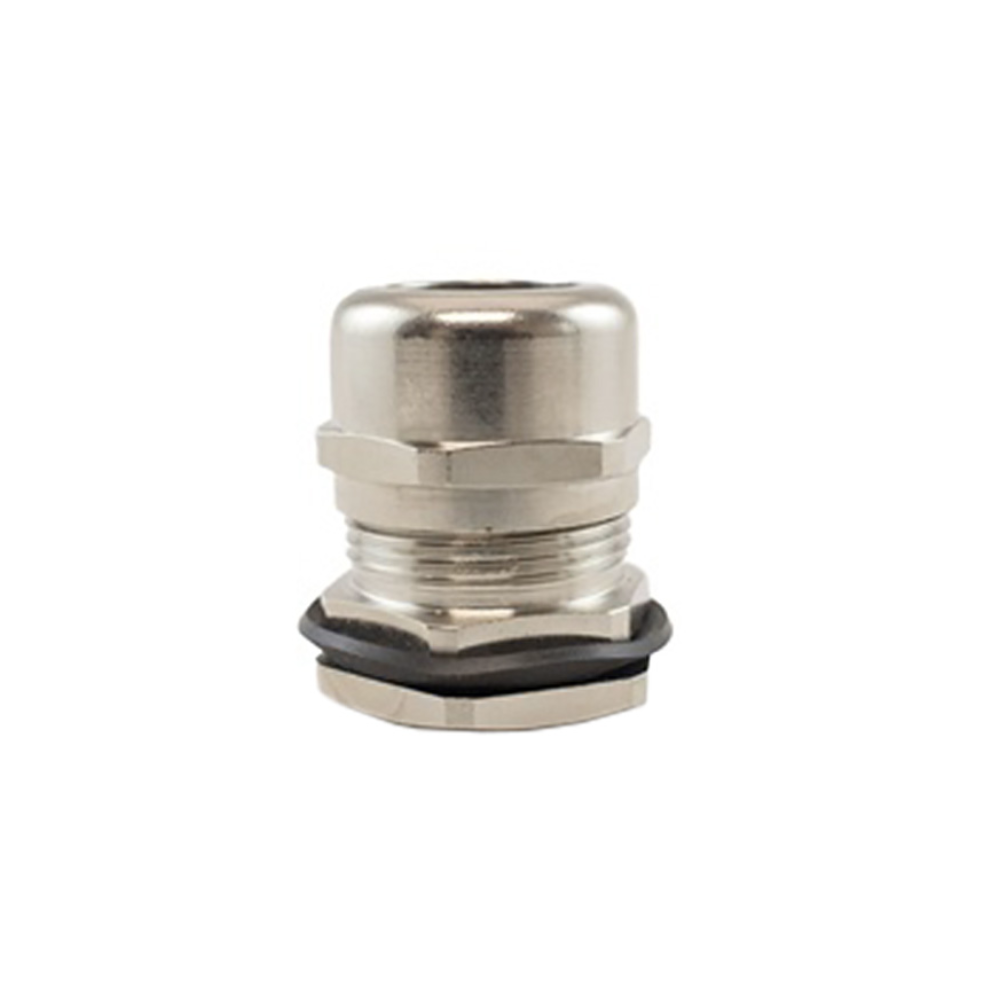

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: CABLE GLAND 11-17MM M25 BRASS
  • Unit of Measure: EA
  • Manufacturer: Alpha Wire
  • Length: 0 mm
  • Series: FIT®
  • Product Status: Active
  • Color: Silver
  • Type: Cable Gland
  • Operating Temperature: -20°C ~ 100°C
  • Material: Brass, Nickel Plated
  • Includes: O-Ring, Seal
  • Ingress Protection: IP66/IP68 - Dust Tight, Water Resistant, Waterproof
  • Outside Cable Diameter Min: 0.433" (11.00mm)
  • Outside Cable Diameter Max: 0.669" (17.00mm)
  • Thread Size: M25x1.5
  • Thread Length: 0.315" (8.00mm)
  • Conduit Hub Size: -
  • Panel Hole Size: 0.984" (25.0mm)
