MECF-05-01-L-DV-NP-K-TR
-
BRVN:BRVN-MECF-05-01-L-DV-NP-K-TR
-
MPN:MECF-05-01-L-DV-NP-K-TR
-
MFR:
-
Description:CONN EDGE DUAL FMALE 10POS 0.05

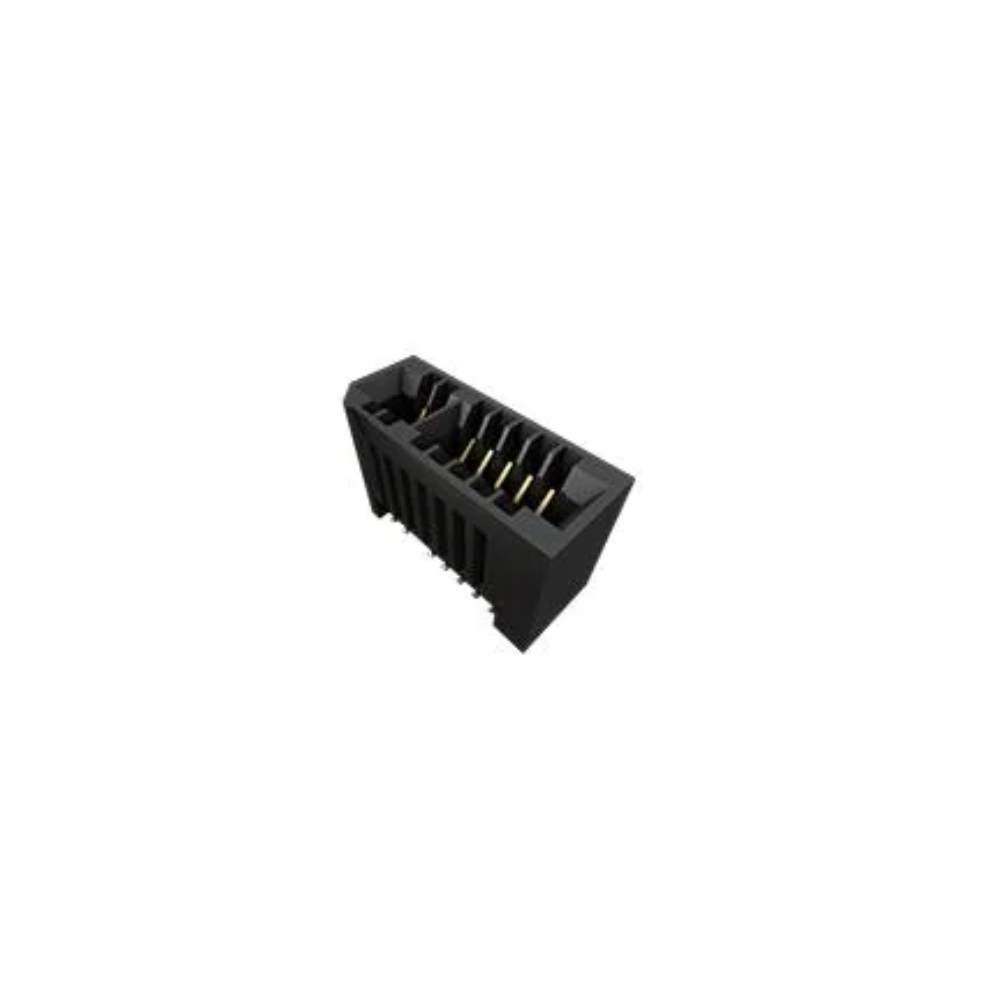

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CONN EDGE DUAL FMALE 10POS 0.05
- Manufacturer: Samtec
- Length: 0 mm
- Series: MECF
- Product Status: Active
- Gender: Female
- Mounting Type: Surface Mount
- Termination: Solder
- Features: Board Guide
- Operating Temperature: -55°C ~ 125°C
- Color: Black
- Pitch: 0.050" (1.27mm)
- Number of Rows: 2
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Number of Positions: 10
- Contact Type: Cantilever
- Contact Material: Beryllium Copper
- Card Type: Non Specified - Dual Edge
- Number of Positions/Bay/Row: -
- Card Thickness: 0.062" (1.57mm)
- Read Out: Dual
- Flange Feature: -
