MCL1204RRGB1T

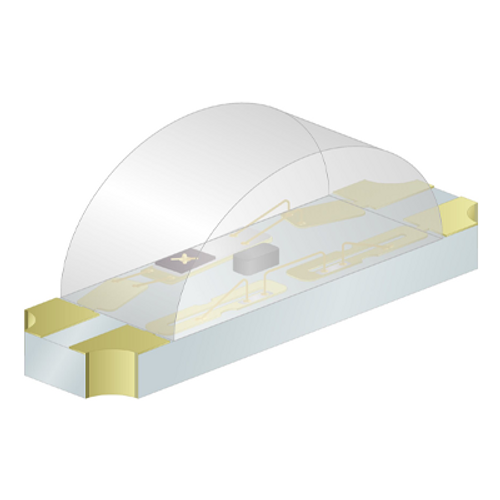

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: MULTI-COLOR LED 1204 R/A LENS RG
- Manufacturer: Venkel
- Length: 0 mm
- Series: MCL
- Product Status: Active
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Package / Case: 1204 (3010 Metric)
- Color: Red, Green, Blue (RGB)
- Configuration: Common Anode
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 112.5mcd Red, 285mcd Green, 45mcd Blue
- Lens Style: Rectangle with Domed Top
- Lens Size: 2.00mm x 1.00mm
- Voltage - Forward (Vf) (Typ): 2V Red, 3.3V Green, 3.3V Blue
- Current - Test: 20mA
- Wavelength - Dominant: 624nm Red, 525nm Green, 470nm Blue
- Wavelength - Peak: 632nm Red, 520nm Green, 468nm Blue
- Features: -
- Supplier Device Package: 1204
- Size / Dimension: 3.00mm L x 1.00mm W
- Height (Max): 2.10mm
-
- Datasheet: BRVN-MCL1204RRGB1T
