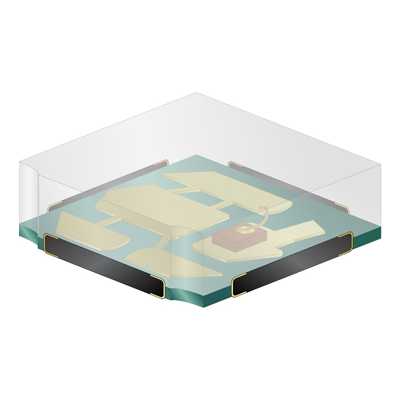

MCL0603FRD1GR1T
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: MULTI-COLOR LED 0603 FLAT LENS R
- Manufacturer: Venkel
- Length: 0 mm
- Series: MCL
- Product Status: Active
- Viewing Angle: 140°
- Mounting Type: Surface Mount
- Package / Case: 0603 (1608 Metric)
- Color: Green, Red
- Configuration: Independent
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 200mcd Red, 125mcd Green
- Lens Style: Rectangle with Flat Top
- Lens Size: 1.00mm x 0.80mm
- Voltage - Forward (Vf) (Typ): 1.5V Red, 1.7V Green
- Current - Test: 20mA
- Wavelength - Dominant: 630nm Red, 574nm Green
- Wavelength - Peak: 642nm Red, 575nm Green
- Features: -
- Supplier Device Package: 0603 (1608 Metric)
- Size / Dimension: 1.60mm L x 0.80mm W
- Height (Max): 0.50mm
-
- Datasheet: BRVN-MCL0603FRD1GR1T
