FB04YTYH301
-
BRVN:BRVN-FB04YTYH301
-
MPN:FB04YTYH301
-
MFR:
-
Description:1204, 25%, T&R, ui : 200, High,

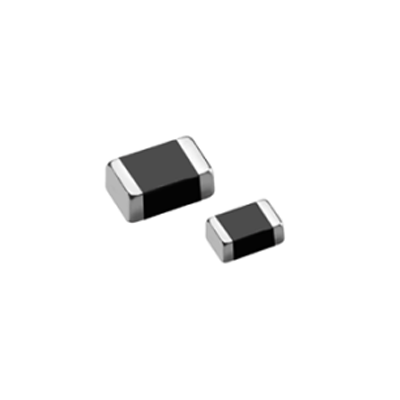

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 1204, 25%, T&R, ui : 200, High,
- Manufacturer: Stackpole Electronics, Inc.
- Length: 0 mm
- Series: FB
- Product Status: Active
- Operating Temperature: -55°C ~ 125°C
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 1206 (3216 Metric)
- Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
- Ratings: -
- Filter Type: Power Line
- Number of Lines: 1
- Impedance @ Frequency: 300 Ohms @ 100 MHz
- Current Rating (Max): 2A
- DC Resistance (DCR) (Max): 60mOhm
- Height (Max): 0.051" (1.30mm)
-
- Datasheet: BRVN-FB04YTYH301
