FAD1-04010DHMW11

  • BRVN:
    BRVN-FAD1-04010DHMW11
  • MPN:
    FAD1-04010DHMW11
  • MFR:
  • Description:
    FAN AXIAL 40X10MM 24VDC WIRE
Datasheet
Default Image
Default Image

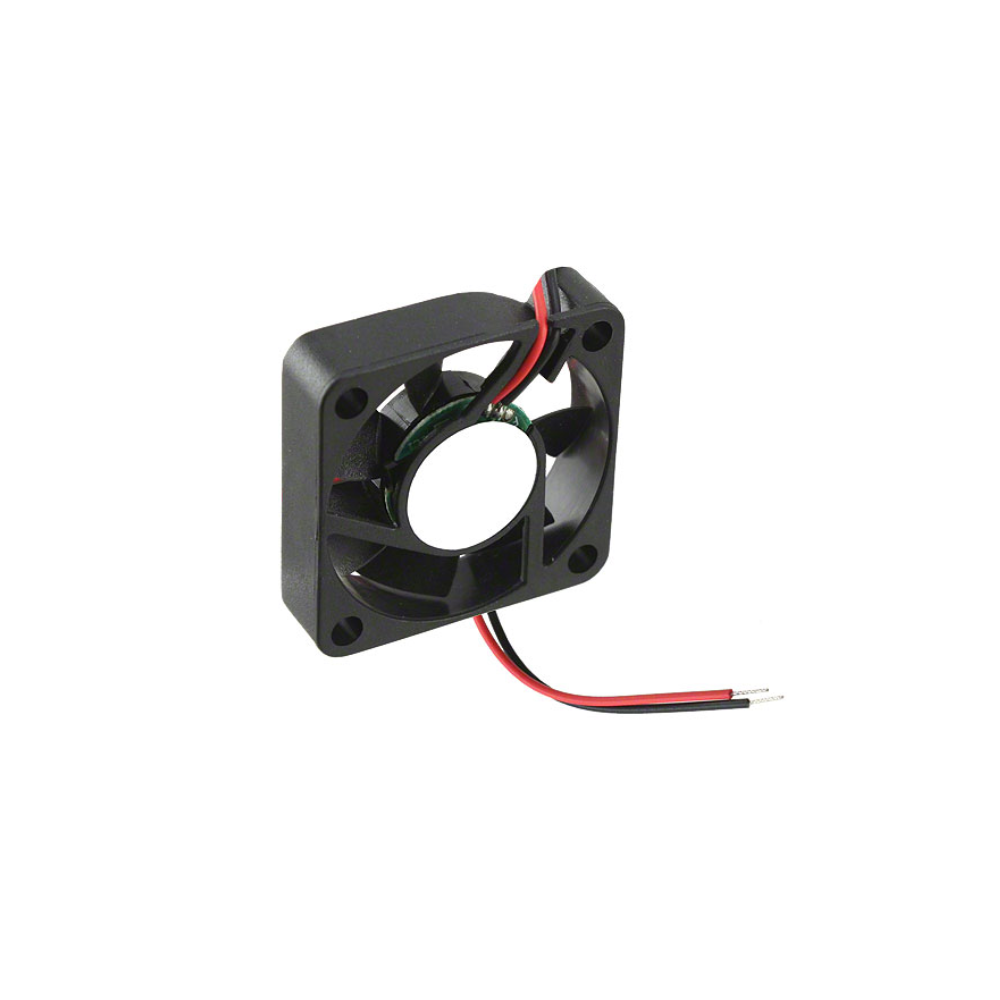

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: FAN AXIAL 40X10MM 24VDC WIRE
  • Manufacturer: Qualtek Electronics
  • Length: 0 mm
  • Series: FAD1-04010
  • Product Status: Active
  • Features: -
  • Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
  • Width: 10.00mm
  • Ingress Protection: -
  • Approval Agency: CE, cURus, TUV
  • Termination: 2 Wire Leads
  • Power (Watts): 960 mW
  • Size / Dimension: Square - 40mm L x 40mm H
  • Voltage - Rated: 24VDC
  • Air Flow: 5.0 CFM (0.140m³/min)
  • Static Pressure: 0.078 in H2O (19.4 Pa)
  • Bearing Type: Hydrodynamic
  • Fan Type: Tubeaxial
  • Noise: 22.0dB(A)
  • RPM: 4800 RPM
  • Weight: 0.037 lb (16.78 g)
