BLR-I-304-G

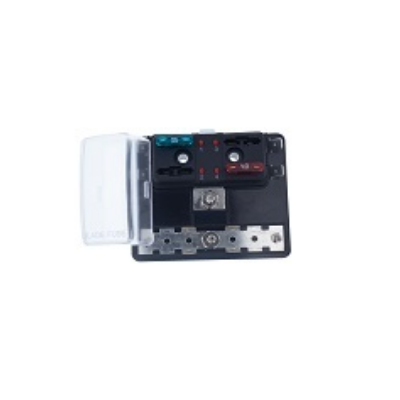

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: REG FUSE BLOCK,4 POLE LED&GROUND
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: -
- Product Status: Active
- Current Rating (Amps): 100 A
- Mounting Type: Chassis Mount
- Fuse Type: Blade
- Fuse Size: 0.760" L x 0.197" W x 0.494" H (19.30mm x 5.00mm x 12.54mm)
- For Use With/Related Products: ATC, ATO
- Fuseholder Type: Block
- Number of Circuits: 4
- Voltage: 32V
- Orientation: Horizontal and Vertical
- Termination Style: Bolt Down, Quick Connect - 0.250" (6.3mm)
- Contact Material: Copper
- Contact Finish: Tin
-
- Datasheet: BRVN-BLR-I-304-G
