BC850CW_R1_00001

  • BRVN:
    BRVN-BC850CW_R1_00001
  • MPN:
    BC850CW_R1_00001
  • MFR:
  • Description:

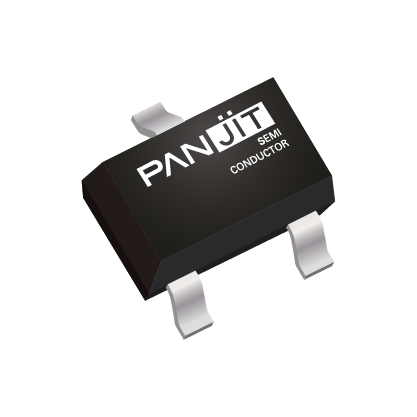

    TRANS NPN 45V 0.1A SOT323
Datasheet

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: TRANS NPN 45V 0.1A SOT323
  • Manufacturer: PANJIT
  • Length: 0 mm
  • Series: GPT-02TAN
  • Product Status: Active
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: SC-70, SOT-323
  • Supplier Device Package: SOT-323
  • Power - Max: 250 mW
  • Transistor Type: NPN
  • Current - Collector (Ic) (Max): 100 mA
  • Voltage - Collector Emitter Breakdown (Max): 45 V
  • Vce Saturation (Max) @ Ib, Ic: 600mV @ 5mA, 100mA
  • Current - Collector Cutoff (Max): 15nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 420 @ 2mA, 5V
  • Frequency - Transition: 100MHz
  • ECCN: EAR99
  • HTSUS: 8541299000
