ANT-21012EB56

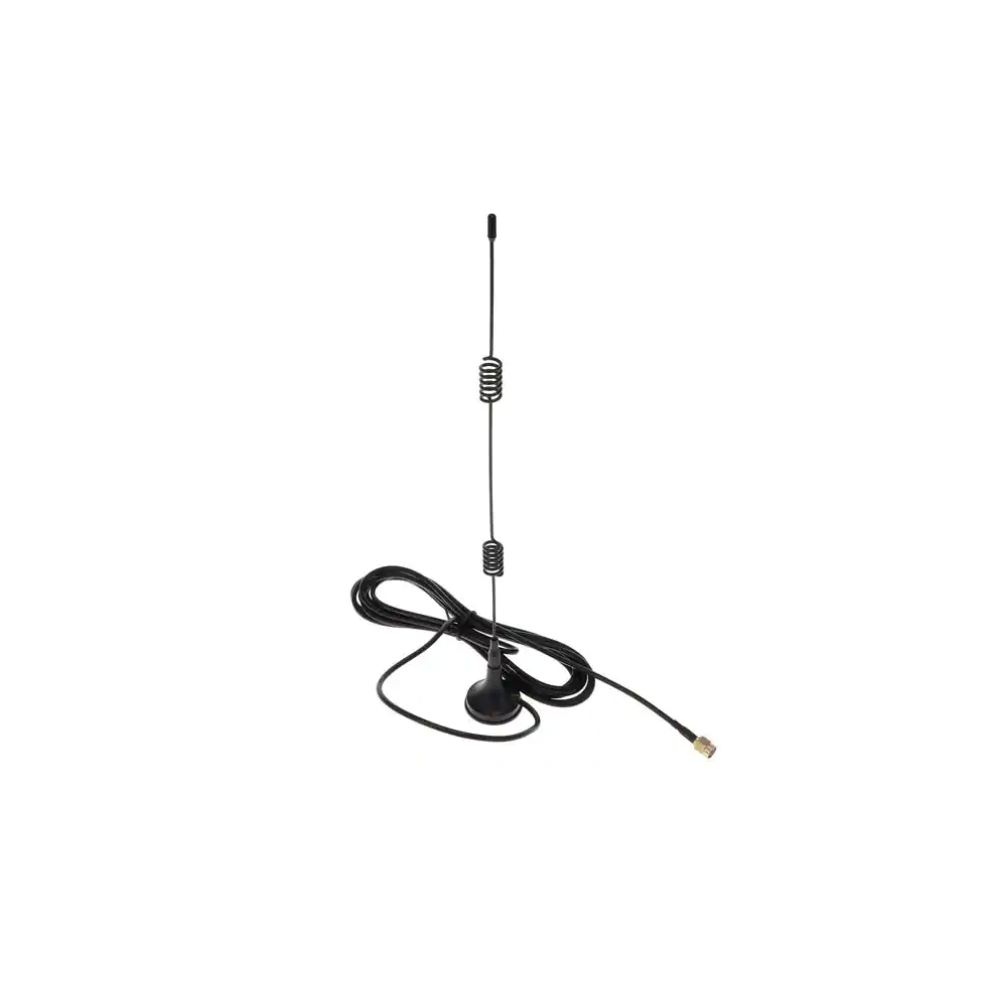

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: RF ANT, 3G/2G, MAGNETIC WHIP
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: -
- Product Status: Active
- Features: Cable - 2.5m
- Mounting Type: Magnetic
- Ingress Protection: -
- RF Family Standard: Cellular, Navigation
- Frequency Group: UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency Center Band: 892MHz, 1.94GHz
- Frequency Range: 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
- Antenna Type: Whip, Straight
- Number of Bands: 2
- VSWR: 2.5, 3.5
- Return Loss: -5dB, -7dB
- Gain: -2.6dBi, 3.1dBi, 2.2dBi, 4.8dBi
- Power Max: 25 W
- Termination: SMA Male
- Height Max: 10.354" (263.00mm)
- Applications: 2G, 3G, GNSS
-
- Datasheet: BRVN-ANT-21012EB56
