ANT-20228WB56

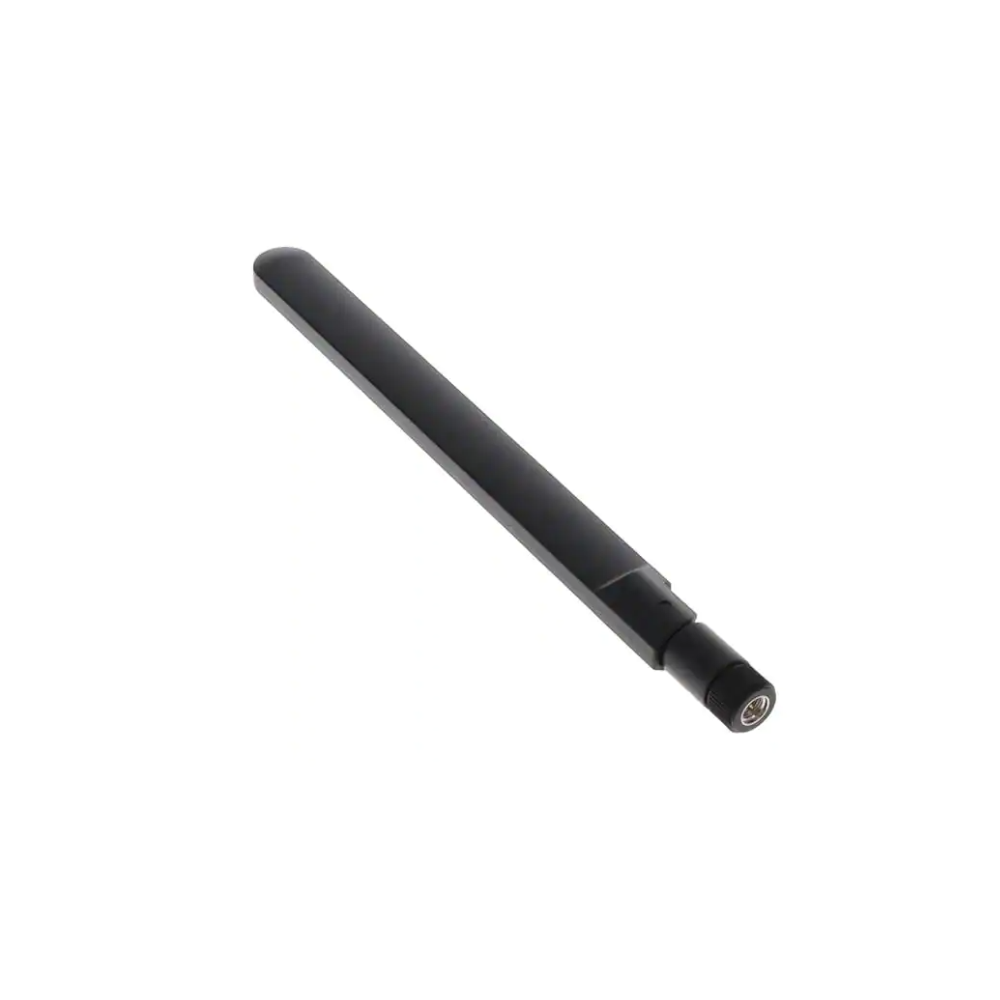

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: RF ANT, 5G&4G&3G&2G/NB-IOT/CAT M
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: -
- Product Status: Active
- Features: -
- Mounting Type: Connector Mount
- Ingress Protection: -
- RF Family Standard: Cellular
- Frequency Group: Wide Band
- Frequency Center Band: 780MHz, 2.05GHz, 4.5GHz
- Frequency Range: 600MHz ~ 960MHz, 1.4GHz ~ 2.7GHz, 3GHz ~ 6GHz
- Antenna Type: Whip, Tilt
- Number of Bands: 3
- VSWR: 4, 5
- Return Loss: -3.5dB, -5dB
- Gain: -3dBi, 4.5dBi, 0.5dBi, 5dBi, 1dBi, 6dBi
- Power Max: 5 W
- Termination: SMA Male
- Height Max: 7.598" (193.00mm)
- Applications: 2G, 3G, 4G, 5G, LPWA
-
- Datasheet: BRVN-ANT-20228WB56
