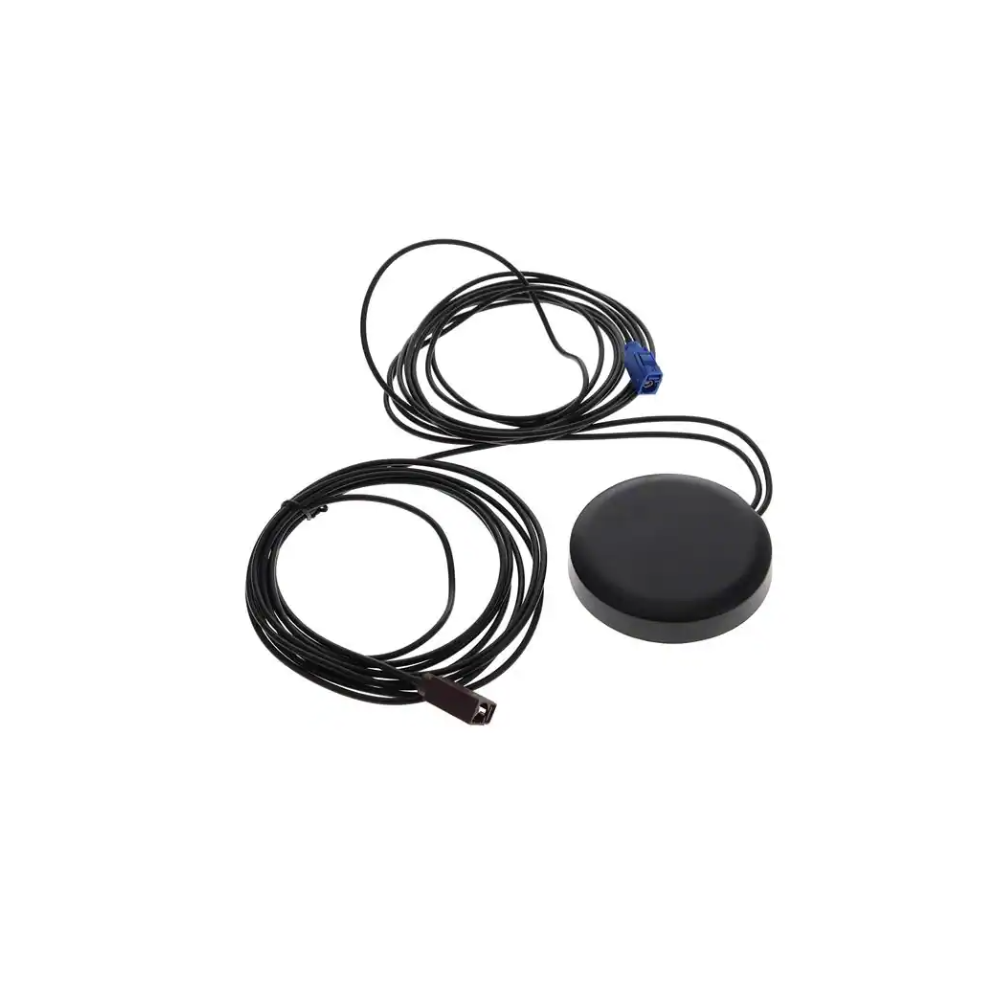

ANT-19078EB56
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: RF ANT, CABLE 1:4G/3G/2GCABLE 2:
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: -
- Product Status: Active
- Features: Cable - 3m, Filter
- Mounting Type: Magnetic
- Ingress Protection: -
- RF Family Standard: Cellular, Navigation
- Frequency Group: Wide Band
- Frequency Center Band: 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz
- Frequency Range: 698MHz ~ 960MHz, 1.598GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz
- Antenna Type: Module
- Number of Bands: 5
- VSWR: 2, 3
- Return Loss: -6dB, -15dB
- Gain: -0.5dBi, 2.5dBi, 0.4dBi, 0.3dBi, 0.9dBi, 0.4dBi, 3dBi, 0.6dBi, 3.2dBi
- Power Max: 5 W
- Termination: -
- Height Max: 0.564" (14.32mm)
- Applications: 2G, 3G, 4G, Galileo, GLONASS, GPS
-
- Datasheet: BRVN-ANT-19078EB56
