ANF-180A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-

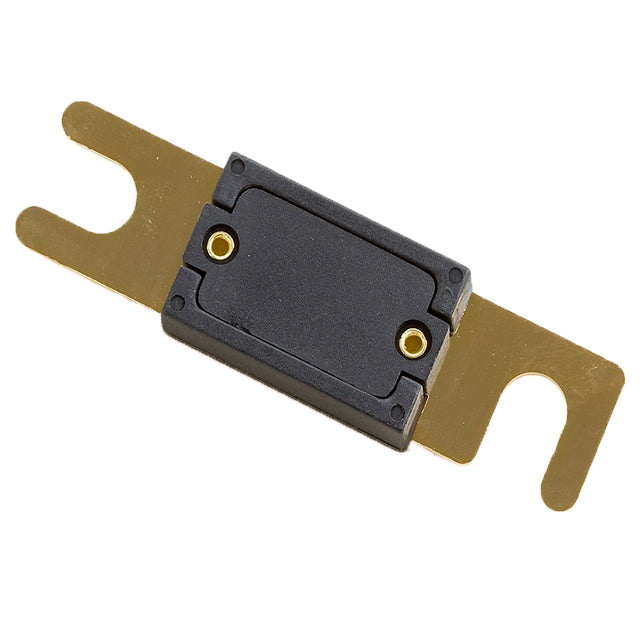

- Description: FUSE STRIP 180A 32VDC RECT
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: ANF
- Product Status: Active
- Voltage Rating - AC: -
- Current Rating (Amps): 180A
- Approval Agency: -
- Package / Case: Rectangular, Blade
- Operating Temperature: -
- Mounting Type: Bolt Mount
- Size / Dimension: 1.390" L x 0.870" W x 0.327" H (35.30mm x 22.10mm x 8.30mm)
- Fuse Type: Fuse Strip
- Voltage Rating - DC: 32 V
- Response Time: Fast Blow
- Breaking Capacity @ Rated Voltage: -
- Applications: Automotive
- Features: -
- Class: -
-
- Datasheet: BRVN-ANF-180A
