ADC-098-8

  • BRVN:
    BRVN-ADC-098-8
  • MPN:
    ADC-098-8
  • MFR:
  • Description:
    DC POWER JACK
Datasheet
ADC-098-8

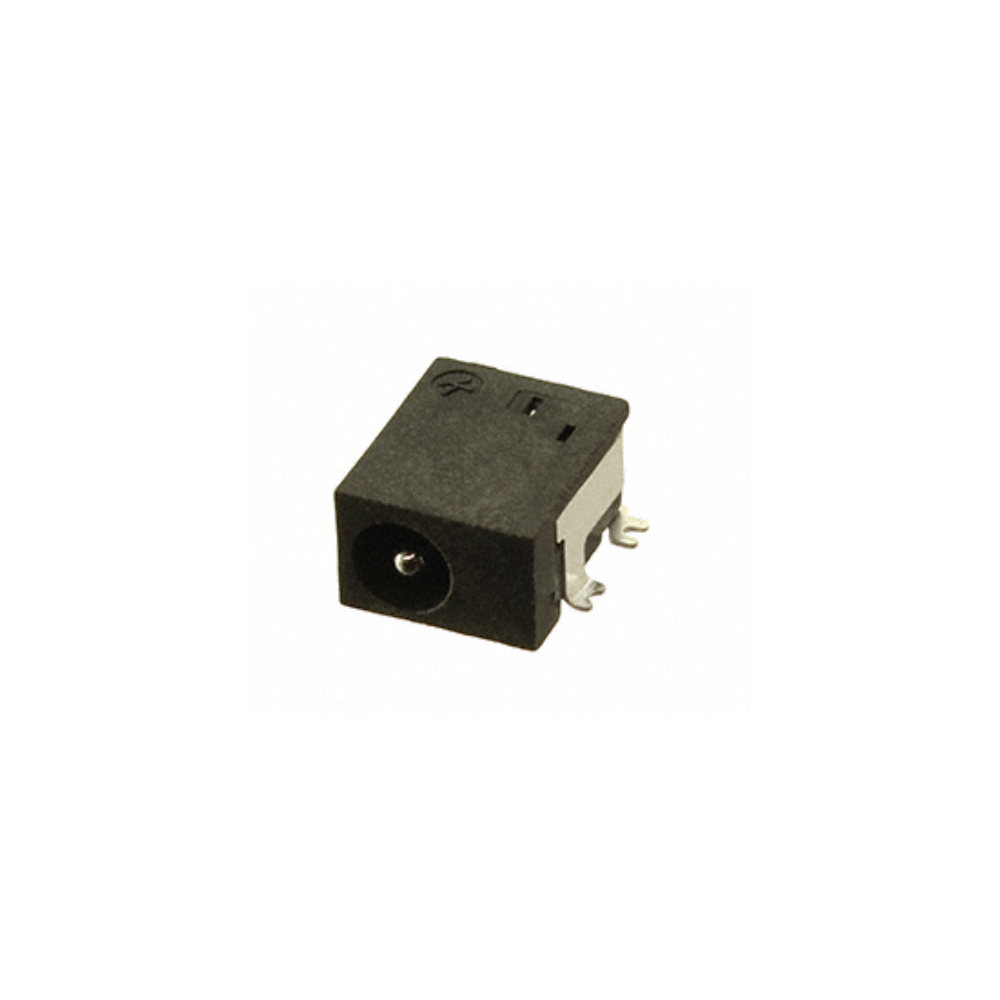

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: DC POWER JACK
  • Manufacturer: Adam Tech
  • Length: 0 mm
  • Series: ADC
  • Product Status: Active
  • Features: Board Guide
  • Shielding: Unshielded
  • Mounting Type: Surface Mount, Right Angle
  • Current Rating Amps: 2:00 AM
  • Ingress Protection: -
  • Operating Temperature: -20°C ~ 70°C
  • Connector Type: Jack
  • Termination: Solder
  • Gender: Male
  • Industry Recognized Mating Diameter: 0.65mm ID (0.026"), 2.35mm OD (0.093")
  • Actual Diameter: 0.026" (0.65mm ID), 0.102" (2.60mm OD)
  • Number of Positions Contacts: 2 Conductors, 3 Contacts
  • Internal Switchs: Single Switch, Normally Closed
  • Mounting Feature: -
  • Insulation Color: Black
  • Voltage Rated: 20VDC
  • Mating Length Depth: -
  • Material Flammability Rating: UL94 V-0
