A-CSL-S-020-B5
-
BRVN:BRVN-A-CSL-S-020-B5
-
MPN:A-CSL-S-020-B5
-
MFR:
-
Description:CONN PIN SPRING LOAD 7.493MM AU

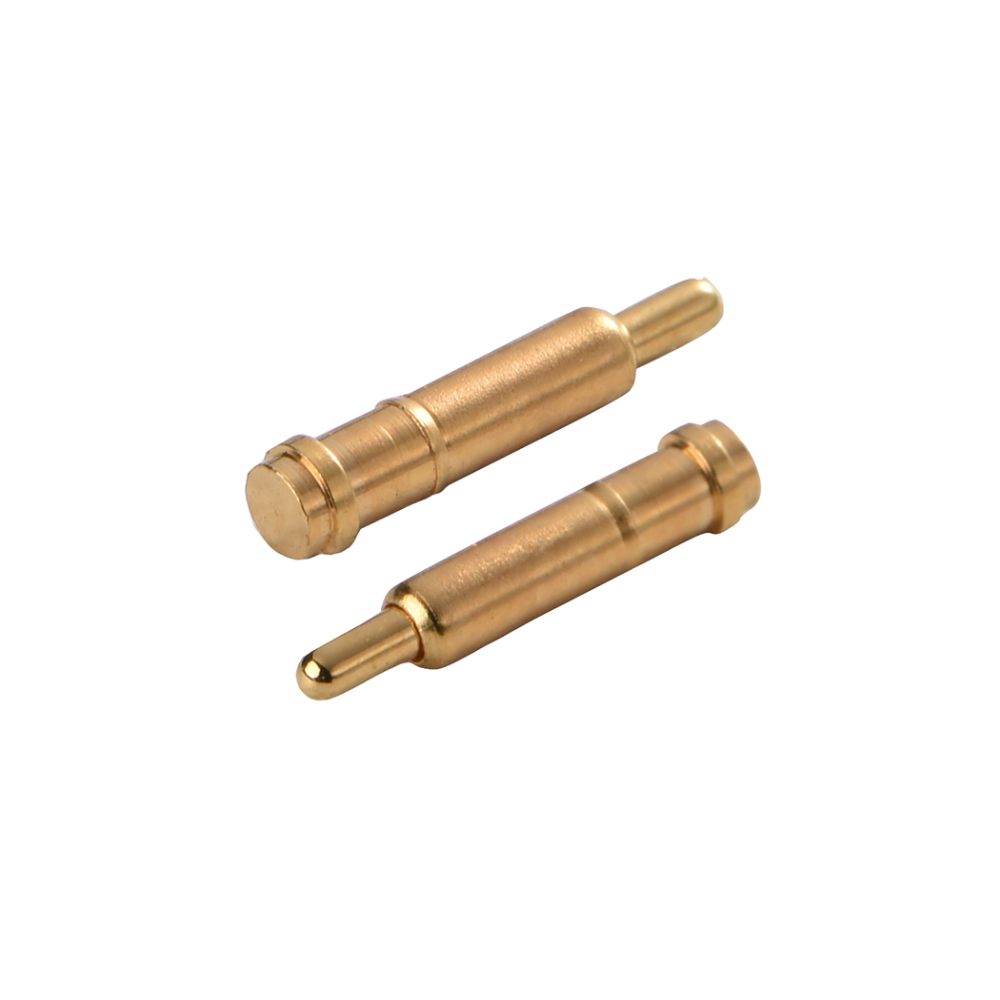

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CONN PIN SPRING LOAD 7.493MM AU
- Manufacturer: ASSMANN WSW Componets
- Length: 0 mm
- Series: -
- Product Status: Active
- Mounting Type: Surface Mount
- Features: -
- Mating Cycles: 1000000
- Contact Material: Brass
- Contact Finish: Gold
- Contact Finish Thickness: 20.0µin (0.51µm)
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Maximum Working Height: 0.295" (7.49mm)
- Recommended Working Height: 0.268" (6.80mm)
- Minimum Working Height: 0.240" (6.10mm)
- Pad Layout Dimension: Circular - 0.066" (1.68mm)
- Operating Force - Initial: 60gf
- Operating Force - Mid Compression: -
- Plunger Size: 0.032" (0.81mm) Dia
-
- Datasheet: BRVN-A-CSL-S-020-B5
