A-CSL-S-020-B1
-
BRVN:BRVN-A-CSL-S-020-B1
-
MPN:A-CSL-S-020-B1
-
MFR:
-

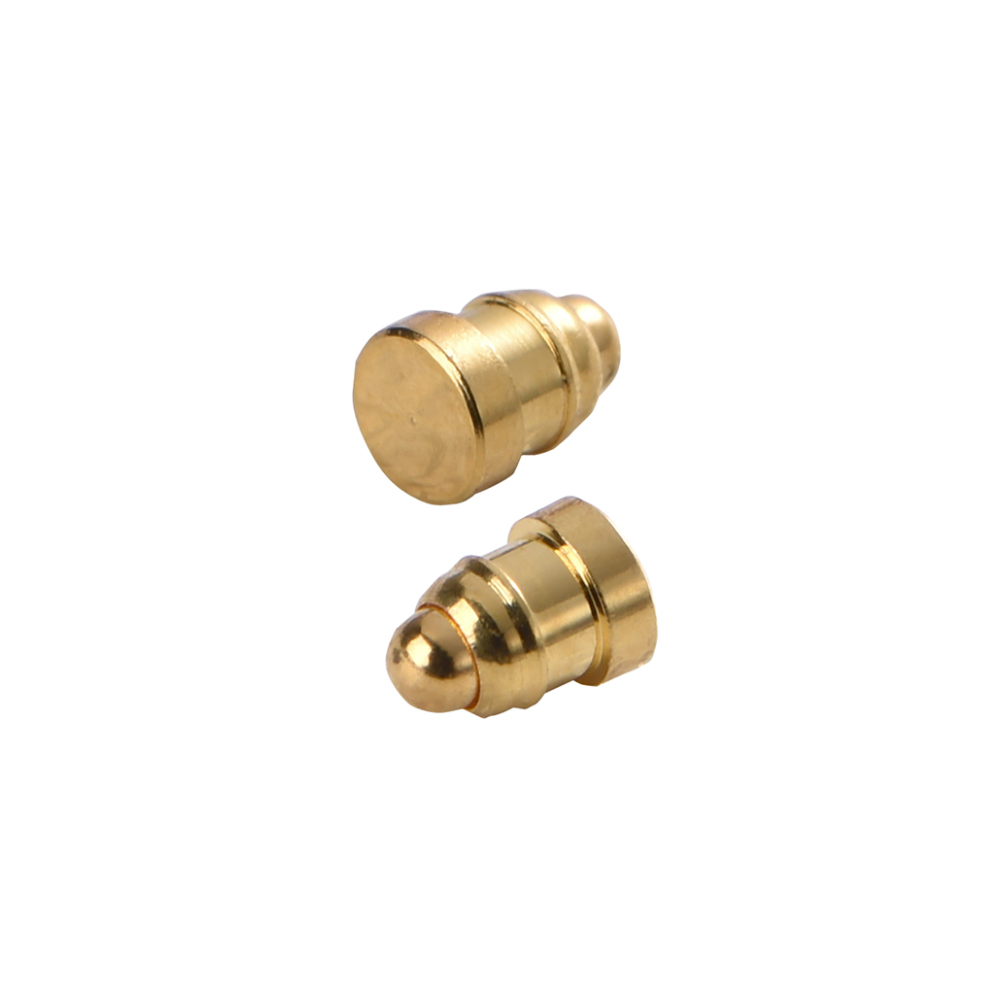

Description:CONN PIN SPRING LOAD 2.540MM AU
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CONN PIN SPRING LOAD 2.540MM AU
- Manufacturer: ASSMANN WSW Componets
- Length: 0 mm
- Series: -
- Product Status: Active
- Mounting Type: Surface Mount
- Features: -
- Mating Cycles: 1000000
- Contact Material: Brass
- Contact Finish: Gold
- Contact Finish Thickness: 20.0µin (0.51µm)
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Maximum Working Height: 0.100" (2.54mm)
- Recommended Working Height: 0.088" (2.24mm)
- Minimum Working Height: 0.076" (1.93mm)
- Pad Layout Dimension: Circular - 0.072" (1.83mm)
- Operating Force - Initial: 70gf
- Operating Force - Mid Compression: -
- Plunger Size: 0.042" (1.07mm) Dia
-
- Datasheet: BRVN-A-CSL-S-020-B1
