XZWR25X112S7WWB-A

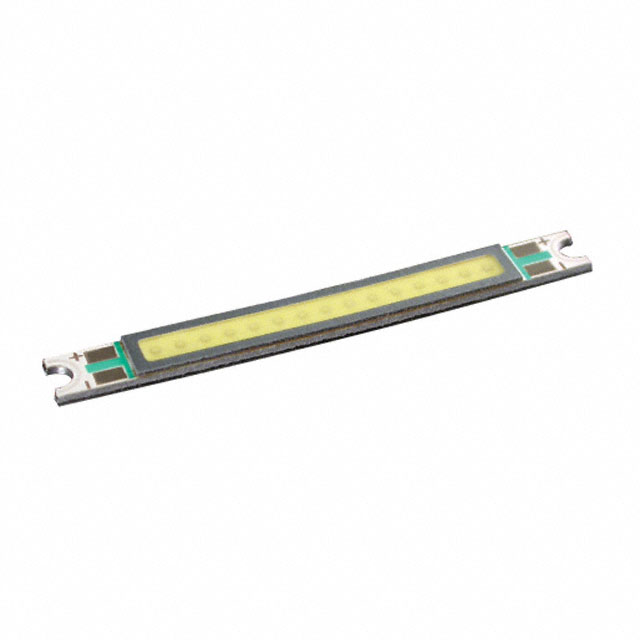

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED MOD WM WHT LNR STRP 3000K
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Obsolete
- Wavelength: -
- Viewing Angle: 120°
- Color: White, Warm
- CCT (K): 3000K (2870K ~ 3220K)
- Current - Test: 700mA
- Voltage - Forward (Vf) (Typ): 10.3V
- Lumens/Watt @ Current - Test: 53 lm/W
- CRI (Color Rendering Index): -
- Current - Max: 700mA
- Size / Dimension: 48.00mm L x 5.00mm W
- Configuration: Linear Light Strip
- Features: -
- Type: LED Module
- Temperature - Test: 25°C
- Luminous Flux @ Current/Temperature: 380lm (Typ)
- Height: 1.60mm
- Light Emitting Surface (LES): 32.40mm L x 3.0mm W
- Lens Type: Flat
-
- Datasheet: BRVN-XZWR25X112S7WWB-A
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
