XZVGMYK54W-4

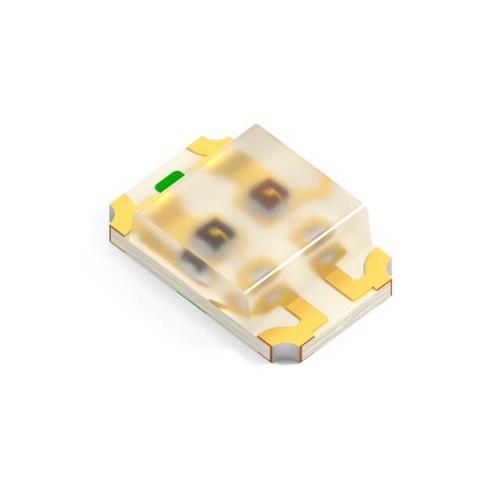

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED GRN/YLW CLEAR CHIP SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Package / Case: 0805 (2012 Metric)
- Color: Green, Yellow
- Current - Test: 20mA Green, 20mA Yellow
- Voltage - Forward (Vf) (Typ): 2.1V Green, 2V Yellow
- Supplier Device Package: Chip LED
- Size / Dimension: 2.00mm L x 1.25mm W
- Configuration: Independent
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 49mcd Green, 118mcd Yellow
- Lens Style: Rectangle with Flat Top
- Lens Size: 1.20mm x 1.25mm
- Wavelength - Dominant: 570nm Green, 590nm Yellow
- Wavelength - Peak: 574nm Green, 590nm Yellow
- Features: -
- Height (Max): 0.45mm
-
- Datasheet: BRVN-XZVGMYK54W-4
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
