XZUYMG56W

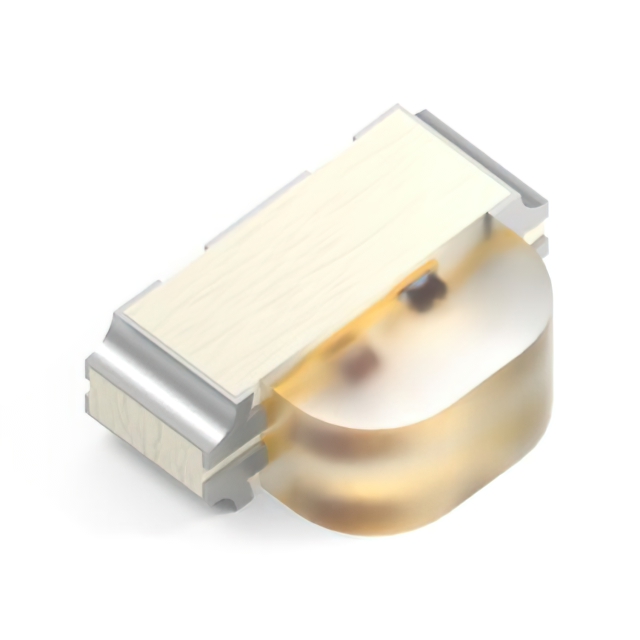

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED GRN/YLW CLEAR 4SMD R/A
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 140°
- Mounting Type: Surface Mount, Right Angle
- Package / Case: 3-SMD, No Lead
- Color: Green, Yellow
- Current - Test: 20mA Green, 20mA Yellow
- Voltage - Forward (Vf) (Typ): 2.2V Green, 2.1V Yellow
- Grade: -
- Qualification: -
- Supplier Device Package: 4-SMD
- Size / Dimension: 3.00mm L x 2.00mm W
- Configuration: Common Anode
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 14mcd Green, 7mcd Yellow
- Lens Style: Rectangle with Domed Top
- Lens Size: 2.00mm x 1.00mm
- Wavelength - Dominant: 568nm Green, 588nm Yellow
- Wavelength - Peak: 565nm Green, 590nm Yellow
- Features: -
- Height (Max): 1.00mm
-
- Datasheet: BRVN-XZUYMG56W
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
