XZURMG62W-1
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-

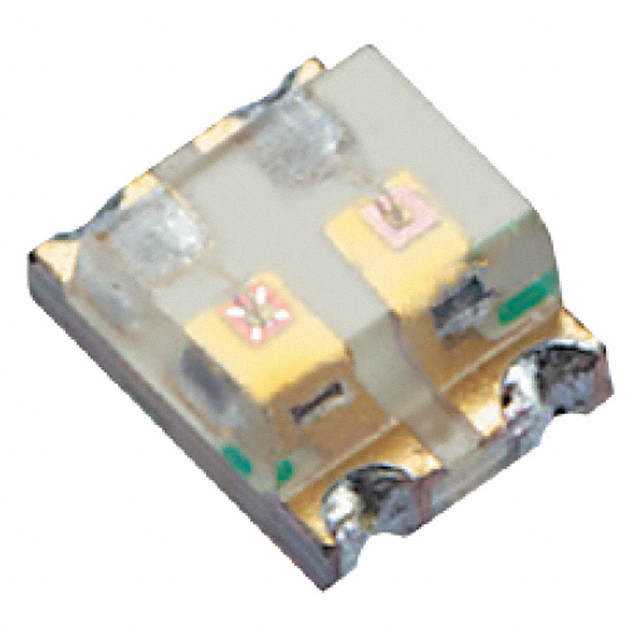

- Description: LED GREEN/RED CLEAR 4SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Package / Case: 0605 (1513 Metric)
- Color: Green, Red
- Current - Test: 20mA Green, 20mA Red
- Voltage - Forward (Vf) (Typ): 2.2V Green, 2V Red
- Grade: -
- Qualification: -
- Supplier Device Package: 4-SMD
- Size / Dimension: 1.60mm L x 1.25mm W
- Configuration: Independent
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 11mcd Green, 6mcd Red
- Lens Style: Rectangle with Flat Top
- Lens Size: 1.10mm x 1.25mm
- Wavelength - Dominant: 568nm Green, 617nm Red
- Wavelength - Peak: 565nm Green, 627nm Red
- Features: -
- Height (Max): 0.65mm
-
- Datasheet: BRVN-XZURMG62W-1
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
