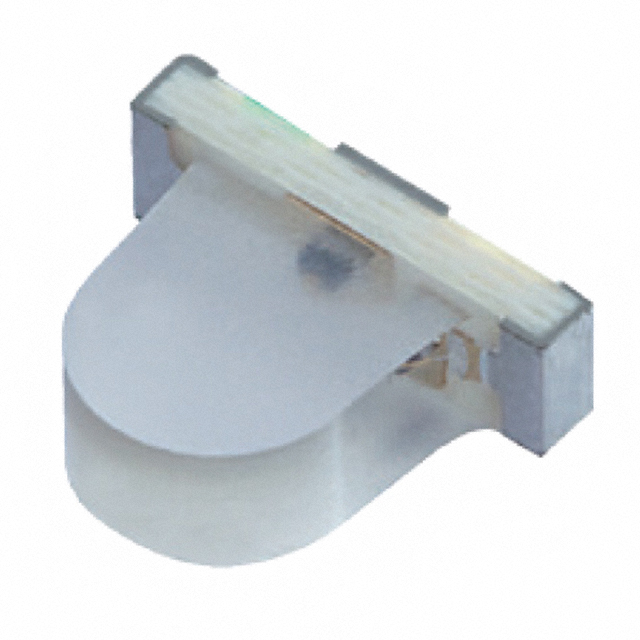

XZTHI56W-1
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: EMITTER IR 880NM 50MA SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Wavelength: 880nm
- Viewing Angle: 30°
- Mounting Type: Surface Mount, Right Angle
- Orientation: Side View
- Operating Temperature: -40°C ~ 85°C (TA)
- Package / Case: 2-SMD, No Lead
- Voltage - Forward (Vf) (Typ): 1.3V
- Grade: -
- Qualification: -
- Type: Infrared (IR)
- Current - DC Forward (If) (Max): 50mA
- Radiant Intensity (Ie) Min @ If: 1mW/sr @ 20mA
-
- Datasheet: BRVN-XZTHI56W-1
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
