XZMOLA112S5W-A

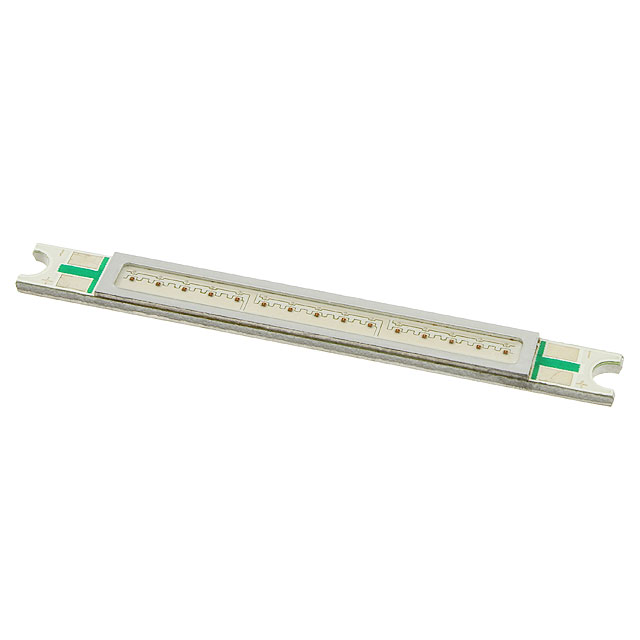

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED MOD RED LNR LGT STRIP
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Obsolete
- Wavelength: 625nm
- Viewing Angle: 120°
- Color: Red
- CCT (K): -
- Current - Test: 500mA
- Voltage - Forward (Vf) (Typ): 7V
- Lumens/Watt @ Current - Test: 26 lm/W
- CRI (Color Rendering Index): -
- Current - Max: 500mA
- Size / Dimension: 48.00mm L x 5.00mm W
- Configuration: Linear Light Strip
- Features: -
- Type: LED Module
- Temperature - Test: 25°C
- Luminous Flux @ Current/Temperature: 89.7lm (Typ)
- Height: 1.60mm
- Light Emitting Surface (LES): 32.40mm L x 3.0mm W
- Lens Type: Flat
-
- Datasheet: BRVN-XZMOLA112S5W-A
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
