XZMDKDGK170W

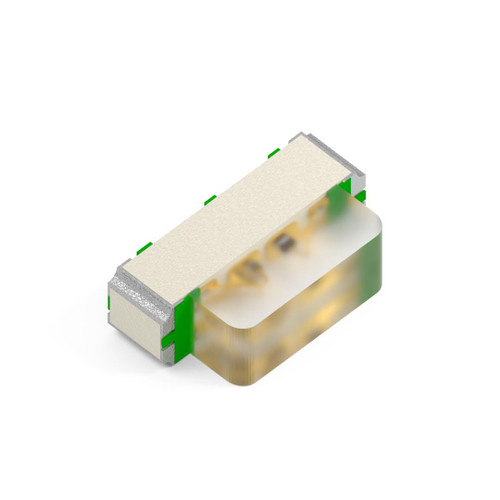

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 2.0X0.6MM BI-COLOR RED/TRUE GREE
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 140°
- Mounting Type: Surface Mount, Right Angle
- Package / Case: 4-SMD, No Lead
- Color: Green, Red
- Current - Test: 20mA Green, 20mA Red
- Voltage - Forward (Vf) (Typ): 3.3V Green, 1.95V Red
- Grade: -
- Qualification: -
- Supplier Device Package: 4-SMD
- Size / Dimension: 2.00mm L x 1.05mm W
- Configuration: Independent
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 447mcd Green, 238mcd Red
- Lens Style: Rectangle with Flat Top
- Lens Size: 1.50mm x 0.61mm
- Wavelength - Dominant: 525nm Green, 630nm Red
- Wavelength - Peak: 515nm Green, 645nm Red
- Features: -
- Height (Max): 0.70mm
-
- Datasheet: BRVN-XZMDKDGK170W
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
