XZMDK81FS

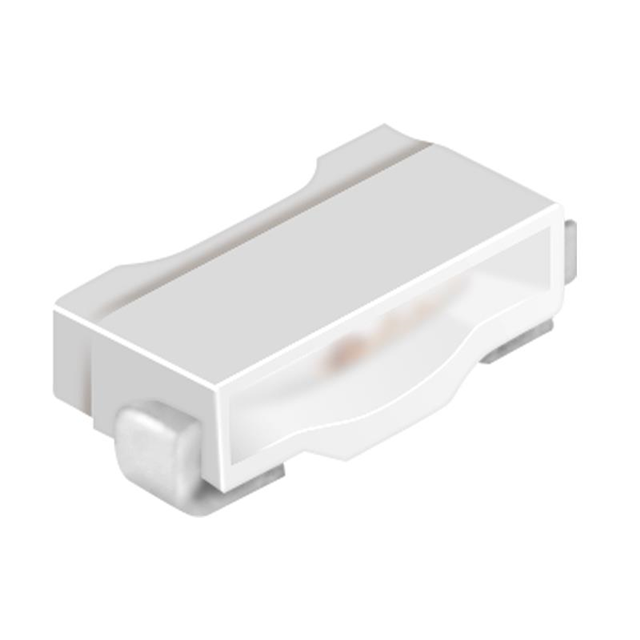

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED RED CLEAR CHIP SMD R/A
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 110°
- Mounting Type: Surface Mount, Right Angle
- Package / Case: 2-SMD, J-Lead
- Color: Red
- Current - Test: 20mA
- Voltage - Forward (Vf) (Typ): 1.95V
- Grade: -
- Qualification: -
- Supplier Device Package: Chip LED
- Size / Dimension: 2.80mm L x 1.20mm W
- Configuration: Standard
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 98mcd
- Lens Style: Rectangle with Flat Top
- Lens Size: 2.30mm x 0.57mm
- Wavelength - Dominant: 630nm
- Wavelength - Peak: 645nm
- Features: -
- Height (Max): 0.80mm
-
- Datasheet: BRVN-XZMDK81FS
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
