XZMDK53W-1

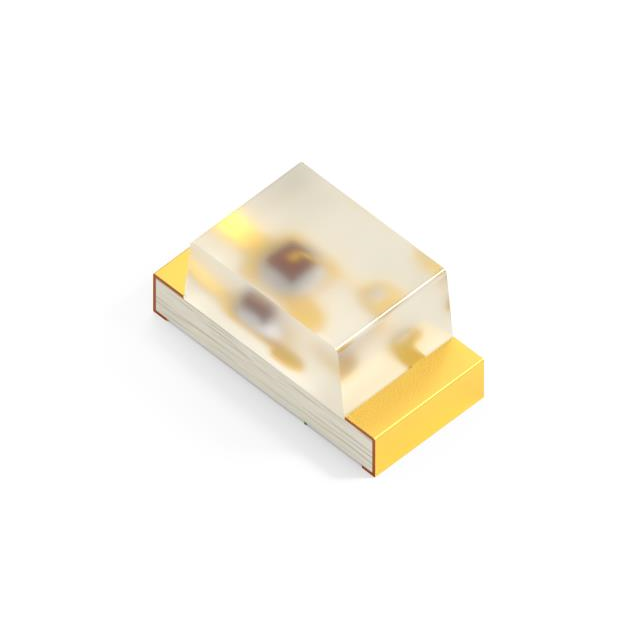

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED RED CLEAR CHIP SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Package / Case: 0603 (1608 Metric)
- Color: Red
- Current - Test: 20mA
- Voltage - Forward (Vf) (Typ): 1.95V
- Grade: -
- Qualification: -
- Supplier Device Package: Chip LED
- Size / Dimension: 1.60mm L x 0.80mm W
- Configuration: Standard
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 79mcd
- Lens Style: Rectangle with Flat Top
- Lens Size: 1.10mm x 0.80mm
- Wavelength - Dominant: 630nm
- Wavelength - Peak: 645nm
- Features: -
- Height (Max): 0.75mm
-
- Datasheet: BRVN-XZMDK53W-1
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
