XZM2CRKM2DGFBB45SCCB

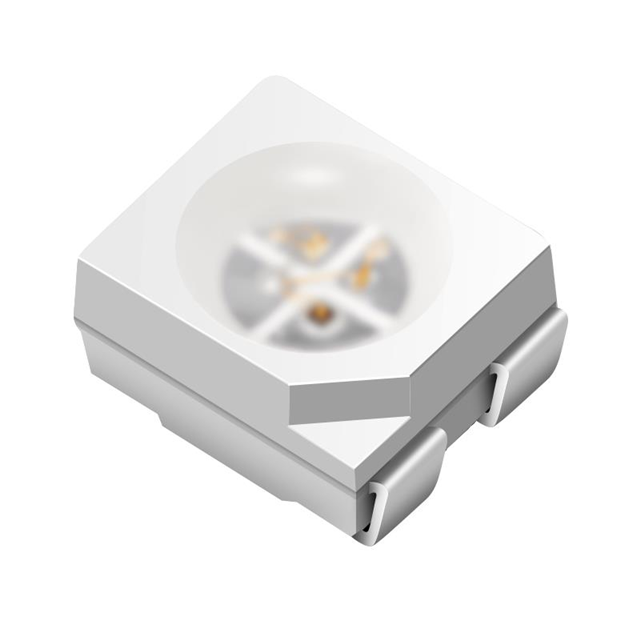

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 3.5X2.8MM RGB PLCC4 SMD LED
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Wavelength: 626nm Red, 525nm Green, 470nm Blue
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Package / Case: 4-PLCC
- Color: Red, Green, Blue (RGB)
- Current - Test: 20mA Red, 20mA Green, 20mA Blue
- Voltage - Forward (Vf) (Typ): -
- Lumens/Watt @ Current - Test: -
- Current - Max: -
- Supplier Device Package: 4-PLCC
- Size / Dimension: 0.126" L x 0.110" W (3.20mm x 2.80mm)
- Height - Seated (Max): 0.083" (2.10mm)
- Temperature - Test: 25°C
- Luminous Flux @ Current/Temperature: -
-
- Datasheet: BRVN-XZM2CRKM2DGFBB45SCCB
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
