XZM2CRKCYKFBB92W-3
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-

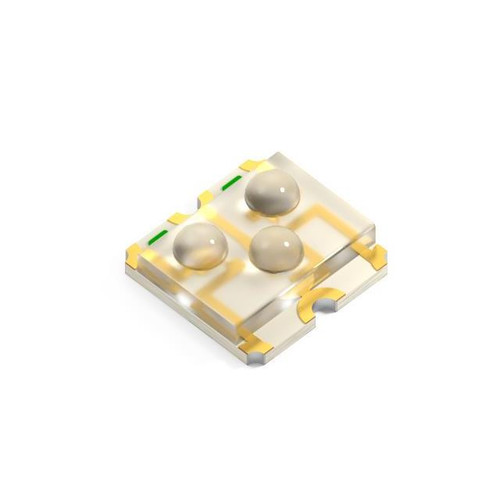

- Description: LED BLUE/RED/YELLOW CLR 1414 SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 50°
- Mounting Type: Surface Mount
- Package / Case: 1414 (3535 Metric)
- Color: Blue, Red, Yellow
- Current - Test: 20mA Blue, 20mA Red, 20mA Yellow
- Voltage - Forward (Vf) (Typ): 3.3V Blue, 2.2V Red, 2V Yellow
- Grade: -
- Qualification: -
- Supplier Device Package: 1414
- Size / Dimension: 3.50mm L x 3.50mm W
- Configuration: Independent
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 597mcd Blue, 3990mcd Red, 1395mcd Yellow
- Lens Style: Round with Domed Top
- Lens Size: 1.00mm Dia
- Wavelength - Dominant: 470nm Blue, 625nm Red, 590nm Yellow
- Wavelength - Peak: 465nm Blue, 640nm Red, 590nm Yellow
- Features: -
- Height (Max): 1.35mm
-
- Datasheet: BRVN-XZM2CRKCYKFBB92W-3
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
