XZFWA53S10MAV-4
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-

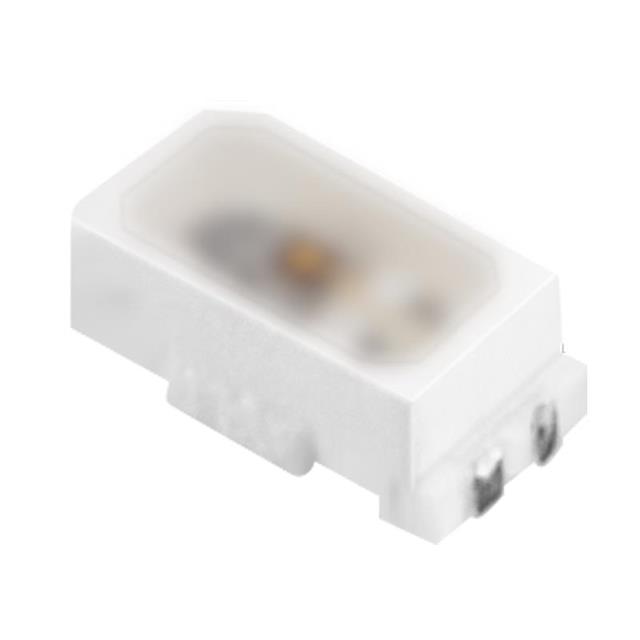

- Description: 1.6X0.8MM WHITE PLCC SMD LED
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Package / Case: 0603 (1608 Metric)
- Color: White
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 3V
- Grade: -
- Qualification: -
- Supplier Device Package: 603
- Size / Dimension: 1.60mm L x 0.80mm W
- Configuration: Independent
- Lens Color: Yellow
- Lens Transparency: Diffused
- Millicandela Rating: 725mcd
- Lens Style: Oval with Flat Top
- Lens Size: -
- Wavelength - Dominant: -
- Wavelength - Peak: -
- Features: -
- Height (Max): 0.70mm
-
- Datasheet: BRVN-XZFWA53S10MAV-4
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
