XZFMDK05C

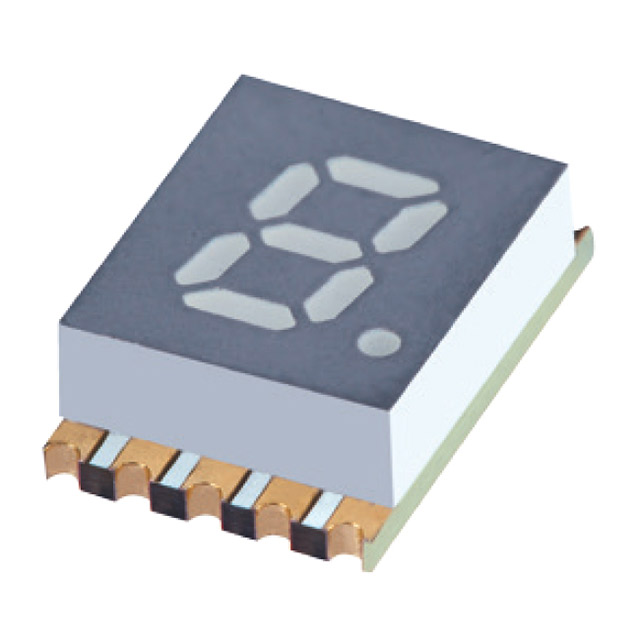

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DISPLAY 7-SEG 0.2" SGL RED 10SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Package / Case: 10-SMD, No Lead
- Color: Red
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 1.85V
- Size / Dimension: 0.315" H x 0.272" W x 0.118" D (8.00mm x 6.90mm x 3.00mm)
- Millicandela Rating: 8mcd
- Wavelength - Peak: 645nm
- Number of Characters: 1
- Digit/Alpha Size: 0.20" (5.08mm)
- Display Type: 7-Segment
- Common Pin: Common Cathode
- Power Dissipation (Max): 75mW
- Display Format: -
-
- Datasheet: BRVN-XZFMDK05C
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
