XZFDGK10C

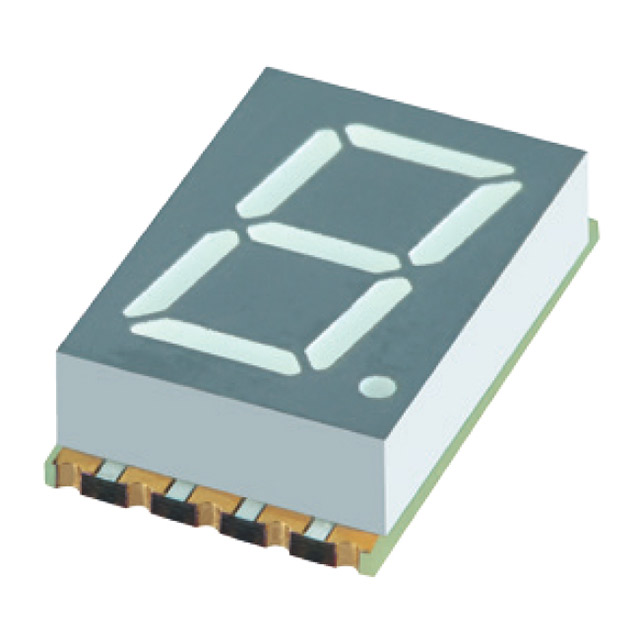

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DISPLAY 7SEG 0.4" SGL GRN 10SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Package / Case: 10-SMD, No Lead
- Color: Green
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 3V
- Size / Dimension: 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm)
- Millicandela Rating: 65mcd
- Wavelength - Peak: 515nm
- Number of Characters: 1
- Digit/Alpha Size: 0.40" (10.16mm)
- Display Type: 7-Segment
- Common Pin: Common Cathode
- Power Dissipation (Max): 102.5mW
- Display Format: -
-
- Datasheet: BRVN-XZFDGK10C
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
