XZFBBMDKDG92W-3

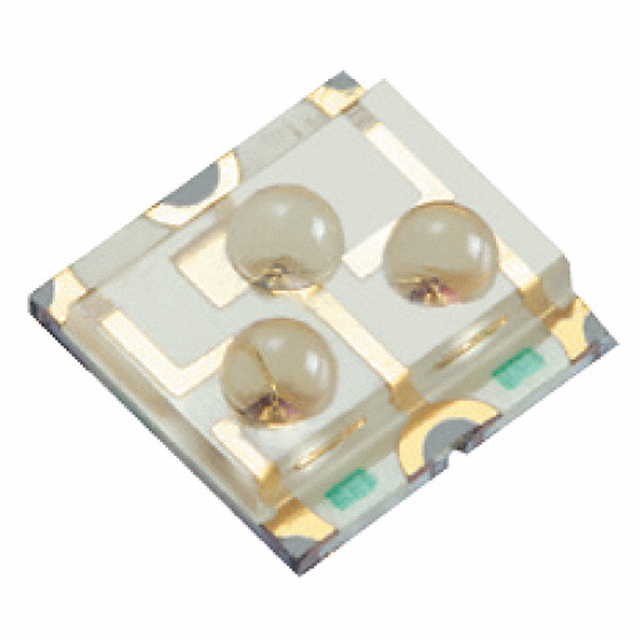

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED RGB CLEAR 6SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Obsolete
- Viewing Angle: 60° Red, 40° Green, 45° Blue
- Mounting Type: Surface Mount
- Package / Case: 6-SMD, No Lead
- Color: Red, Green, Blue (RGB)
- Current - Test: 20mA Red, 20mA Green, 20mA Blue
- Voltage - Forward (Vf) (Typ): 1.95V Red, 3.3V Green, 3.3V Blue
- Supplier Device Package: 6-SMD
- Size / Dimension: 3.50mm L x 3.50mm W
- Configuration: Independent
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 497mcd Red, 1195mcd Green, 497mcd Blue
- Lens Style: Rectangle with Domed Top
- Lens Size: 3.50mm x 2.50mm
- Wavelength - Dominant: 630nm Red, 525nm Green, 470nm Blue
- Wavelength - Peak: 645nm Red, 515nm Green, 465nm Blue
- Features: -
- Height (Max): 1.25mm
-
- Datasheet: BRVN-XZFBBMDKDG92W-3
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
