XZFBBA05C
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-

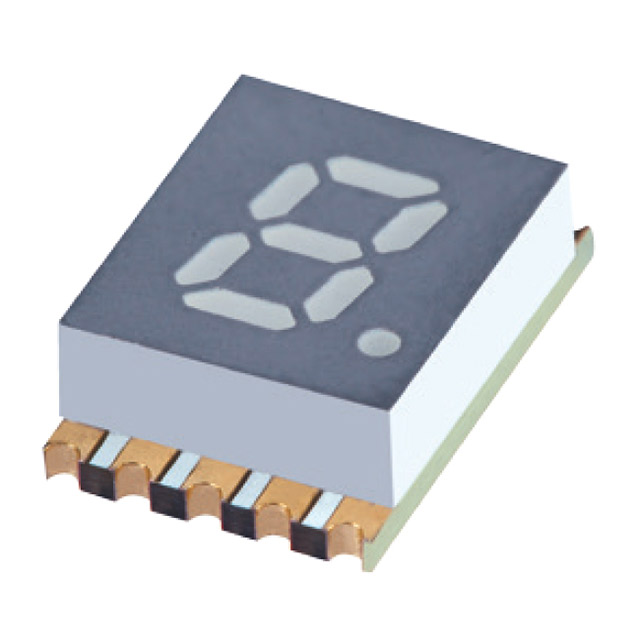

- Description: DISPLAY 7SEG 0.2" SGL BLUE 10SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Obsolete
- Package / Case: 10-SMD, No Lead
- Color: Blue
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 3.05V
- Size / Dimension: 0.394" H x 0.272" W x 0.118" D (10.00mm x 6.90mm x 3.00mm)
- Millicandela Rating: 4mcd
- Wavelength - Peak: 468nm
- Number of Characters: 1
- Digit/Alpha Size: 0.20" (5.08mm)
- Display Type: 7-Segment
- Common Pin: Common Cathode
- Power Dissipation (Max): 120mW
- Display Format: -
-
- Datasheet: BRVN-XZFBBA05C
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
