XZFBAMYRK172W

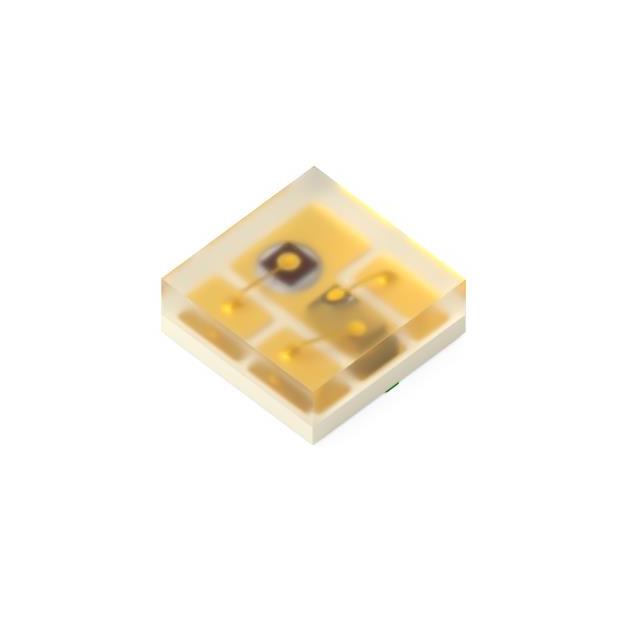

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 0.65X0.65MM BI-COLOR BLUE/YEL SM
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 140°
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, No Lead
- Color: Blue, Yellow
- Current - Test: 5mA Blue, 5mA Yellow
- Voltage - Forward (Vf) (Typ): 2.9V Blue, 1.97V Yellow
- Grade: -
- Qualification: -
- Supplier Device Package: -
- Size / Dimension: 0.65mm L x 0.65mm W
- Configuration: Independent
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 39mcd Blue, 19mcd Yellow
- Lens Style: Square with Flat Top
- Lens Size: 0.65mm
- Wavelength - Dominant: 468nm Blue, 589nm Yellow
- Wavelength - Peak: 463nm Blue, 591nm Yellow
- Features: -
- Height (Max): 0.30mm
-
- Datasheet: BRVN-XZFBAMYRK172W
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
