XZDGCBDMERK150W-1

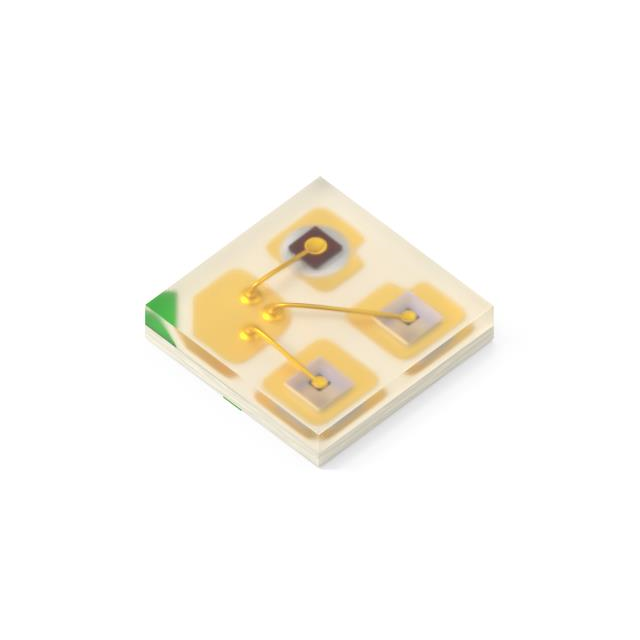

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 1.0X1.0MM RGB SMD 0404 LED
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 150°
- Mounting Type: Surface Mount
- Package / Case: 0404 (1010 Metric)
- Color: Red, Green, Blue (RGB)
- Current - Test: 5mA Red, 5mA Green, 5mA Blue
- Voltage - Forward (Vf) (Typ): 1.95V Red, 2.85V Green, 2.8V Blue
- Grade: -
- Qualification: -
- Supplier Device Package: -
- Size / Dimension: 1.00mm L x 1.00mm W
- Configuration: -
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 29mcd Red, 218mcd Green, 22mcd Blue
- Lens Style: Round with Flat Top
- Lens Size: 1.00mm
- Wavelength - Dominant: 624nm Red, 525nm Green, 465nm Blue
- Wavelength - Peak: 632nm Red, 515nm Green, 460nm Blue
- Features: -
- Height (Max): 0.30mm
-
- Datasheet: BRVN-XZDGCBDMERK150W-1
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
