XZCBDXMDK161W

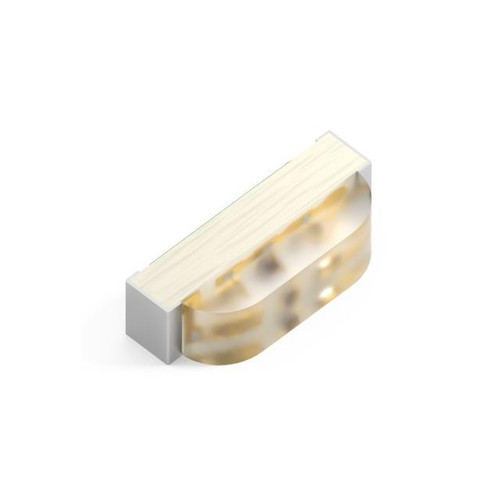

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 2.5X0.7MM BLUE/RED RT ANGLE SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 130°
- Mounting Type: Surface Mount, Right Angle
- Package / Case: 4-SMD, No Lead
- Color: Blue, Red
- Current - Test: 20mA Blue, 20mA Red
- Voltage - Forward (Vf) (Typ): 3.3V Blue, 1.95V Red
- Grade: -
- Qualification: -
- Supplier Device Package: 4-SMD
- Size / Dimension: 2.50mm L x 1.00mm W
- Configuration: Common Anode
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 64mcd Blue, 248mcd Red
- Lens Style: Rectangle with Domed Top
- Lens Size: 2.10mm x 0.70mm
- Wavelength - Dominant: 465nm Blue, 630nm Red
- Wavelength - Peak: 460nm Blue, 645nm Red
- Features: -
- Height (Max): 0.85mm
-
- Datasheet: BRVN-XZCBDXMDK161W
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
