XZCBDMEDGK161W

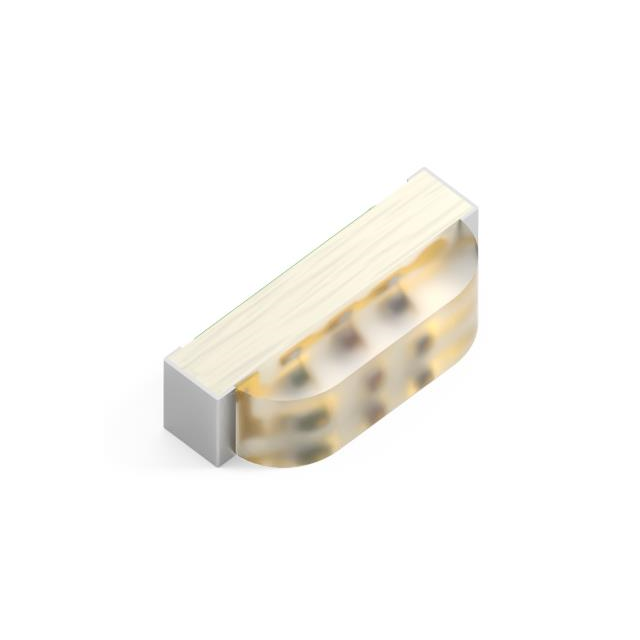

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED RGB CLEAR 4SMD R/A
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 130°
- Mounting Type: Surface Mount, Right Angle
- Package / Case: 4-SMD, No Lead
- Color: Red, Green, Blue (RGB)
- Current - Test: 20mA Red, 20mA Green, 20mA Blue
- Voltage - Forward (Vf) (Typ): 2V Red, 3.3V Green, 3.3V Blue
- Grade: -
- Qualification: -
- Supplier Device Package: 4-SMD
- Size / Dimension: 2.50mm L x 1.00mm W
- Configuration: Common Anode
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 108mcd Red, 397mcd Green, 64mcd Blue
- Lens Style: Rectangle with Domed Top
- Lens Size: 2.11mm x 0.71mm
- Wavelength - Dominant: 621nm Red, 525nm Green, 465nm Blue
- Wavelength - Peak: 630nm Red, 515nm Green, 460nm Blue
- Features: -
- Height (Max): 0.85mm
-
- Datasheet: BRVN-XZCBDMEDGK161W
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
