XZCBD80S-2HTA

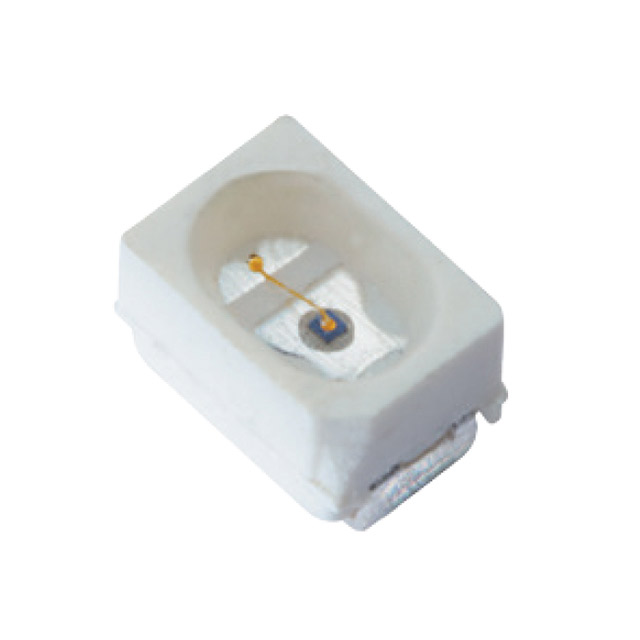

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED BLUE CLEAR 2SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Obsolete
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Package / Case: 2-SMD, J-Lead
- Color: Blue
- Current - Test: 20mA
- Voltage - Forward (Vf) (Typ): 3.3V
- Grade: -
- Qualification: -
- Supplier Device Package: 2-SMD
- Size / Dimension: 2.00mm L x 1.40mm W
- Configuration: Standard
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 80mcd ~ 300mcd
- Lens Style: Oval with Flat Top
- Lens Size: 1.65mm x 1.15mm
- Wavelength - Dominant: 465nm
- Wavelength - Peak: 460nm
- Features: -
- Height (Max): 1.30mm
-
- Datasheet: BRVN-XZCBD80S-2HTA
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
