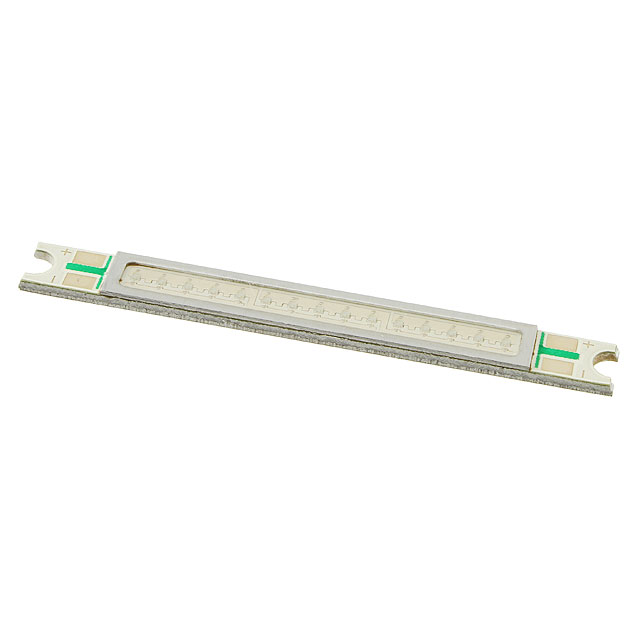

XZCB25X112S7W-A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED MOD BLUE LNR LGT STRIP
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Obsolete
- Wavelength: 460nm
- Viewing Angle: 120°
- Color: Blue
- CCT (K): -
- Current - Test: 700mA
- Voltage - Forward (Vf) (Typ): 10.3V
- Lumens/Watt @ Current - Test: 6 lm/W
- CRI (Color Rendering Index): -
- Current - Max: 700mA
- Size / Dimension: 48.00mm L x 5.00mm W
- Configuration: Linear Light Strip
- Features: -
- Type: LED Module
- Temperature - Test: 25°C
- Luminous Flux @ Current/Temperature: 41.7lm (Typ)
- Height: 1.60mm
- Light Emitting Surface (LES): 32.40mm L x 3.0mm W
- Lens Type: Flat
-
- Datasheet: BRVN-XZCB25X112S7W-A
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
