XZCB25MO24DG25X111S

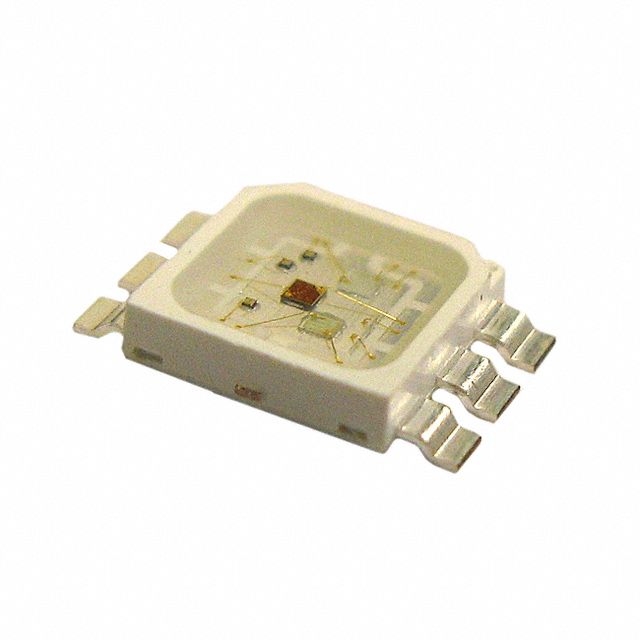

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED RGB CLEAR SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Package / Case: 6-SMD, Gull Wing
- Color: Red, Green, Blue (RGB)
- Current - Test: 150mA Red, 150mA Green, 150mA Blue
- Voltage - Forward (Vf) (Typ): 2.5V Red, 3.5V Green, 3.5V Blue
- Grade: -
- Qualification: -
- Supplier Device Package: SMD
- Size / Dimension: 5.00mm L x 5.00mm W
- Configuration: Common Anode
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 4290mcd Red, 5990mcd Green, 1590mcd Blue
- Lens Style: Square with Flat Top
- Lens Size: 4.25mm
- Wavelength - Dominant: 624nm Red, 525nm Green, 460nm Blue
- Wavelength - Peak: 635nm Red, 515nm Green, 452nm Blue
- Features: -
- Height (Max): 1.30mm
-
- Datasheet: BRVN-XZCB25MO24DG25X111S
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
