XZCB14X146S

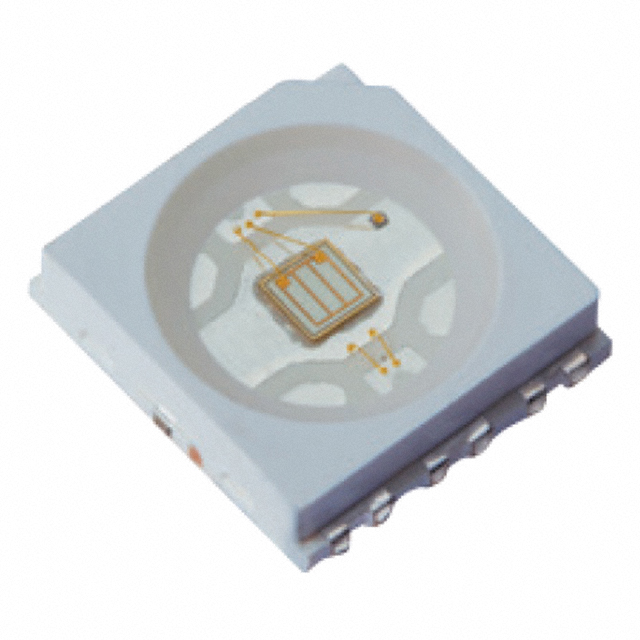

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED BLUE 460NM SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Obsolete
- Wavelength: 460nm (Typ)
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Package / Case: 2020 (5050 Metric)
- Color: Blue
- Current - Test: 350mA
- Voltage - Forward (Vf) (Typ): 3.3V
- Lumens/Watt @ Current - Test: 17 lm/W
- Current - Max: 600mA
- Supplier Device Package: SMD
- Size / Dimension: 0.197" L x 0.197" W (5.00mm x 5.00mm)
- Height - Seated (Max): 0.057" (1.45mm)
- Temperature - Test: 25°C
- Luminous Flux @ Current/Temperature: 20lm (Typ)
-
- Datasheet: BRVN-XZCB14X146S
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
