XZBGR68W5MAV-3

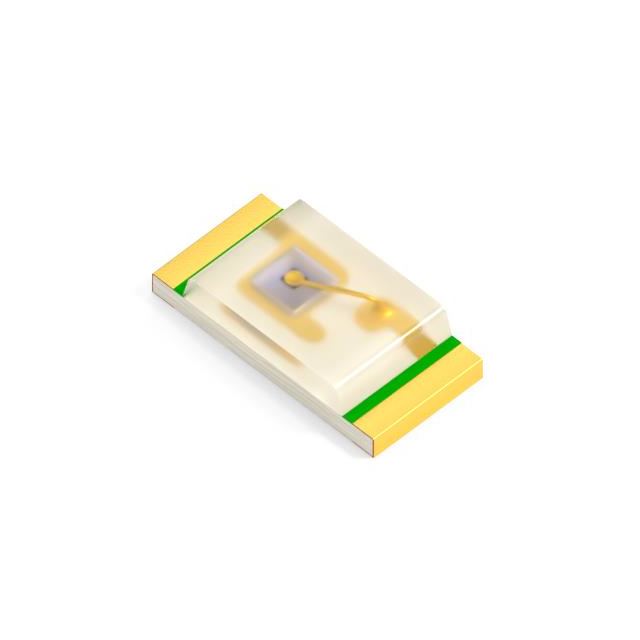

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED GREEN CLEAR 0402 SMD
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Obsolete
- Viewing Angle: 140°
- Mounting Type: Surface Mount
- Package / Case: 0402 (1005 Metric)
- Color: Green
- Current - Test: 5mA
- Voltage - Forward (Vf) (Typ): 3V
- Supplier Device Package: 402
- Size / Dimension: 1.00mm L x 0.50mm W
- Configuration: Standard
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 69mcd
- Lens Style: Rectangle with Flat Top
- Lens Size: 0.60mm x 0.50mm
- Wavelength - Dominant: 527nm
- Wavelength - Peak: 518nm
- Features: -
- Height (Max): 0.25mm
-
- Datasheet: BRVN-XZBGR68W5MAV-3
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
